4.6 Navigating Communication Menu
4.6.1 Introduction
The Communication Menu consists of two /three levels: Function level and Parameter level.
To navigate the Communication Menu press REM button. The REM LED illuminates. The function
menu item appears on the display. Navigate by rotating the Voltage Encoder to scroll the function
level. To select the desired function, press the Encoder button next to the display. In the Parameter
level, the Voltage display shows the function and the Current display shows the parameter. Scroll
the parameter list by rotating the Current Encoder and press to select the desired parameter.
When parameter is accepted, the display blinks once and exits to the previous level.

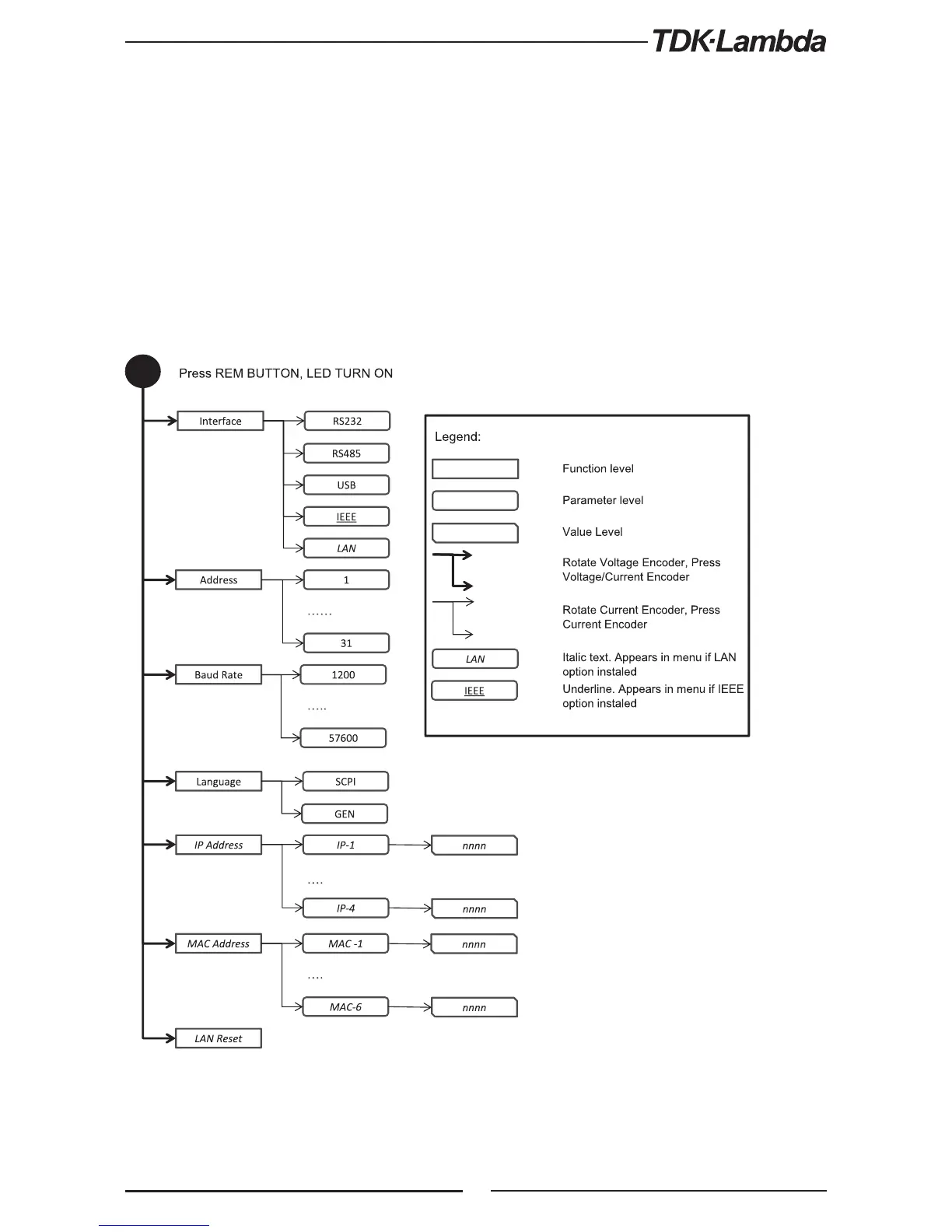

Fig.4-6: Communication Menu diagram
