TDK-Lambda Z+ series - Connectig Power Supply to RS232 or RS485 BUS

76
Socket
Socket
Socket
08-25 CONNECTOR 8 PIN CONNECTOR REMARKS
PIN NO. NAME PIN NO. NAME
1 SHIELD HOUSING SHIELD
2 TX 8 RX TWISTED
3 RX 7 TX PAIR
7 SG 1 SG

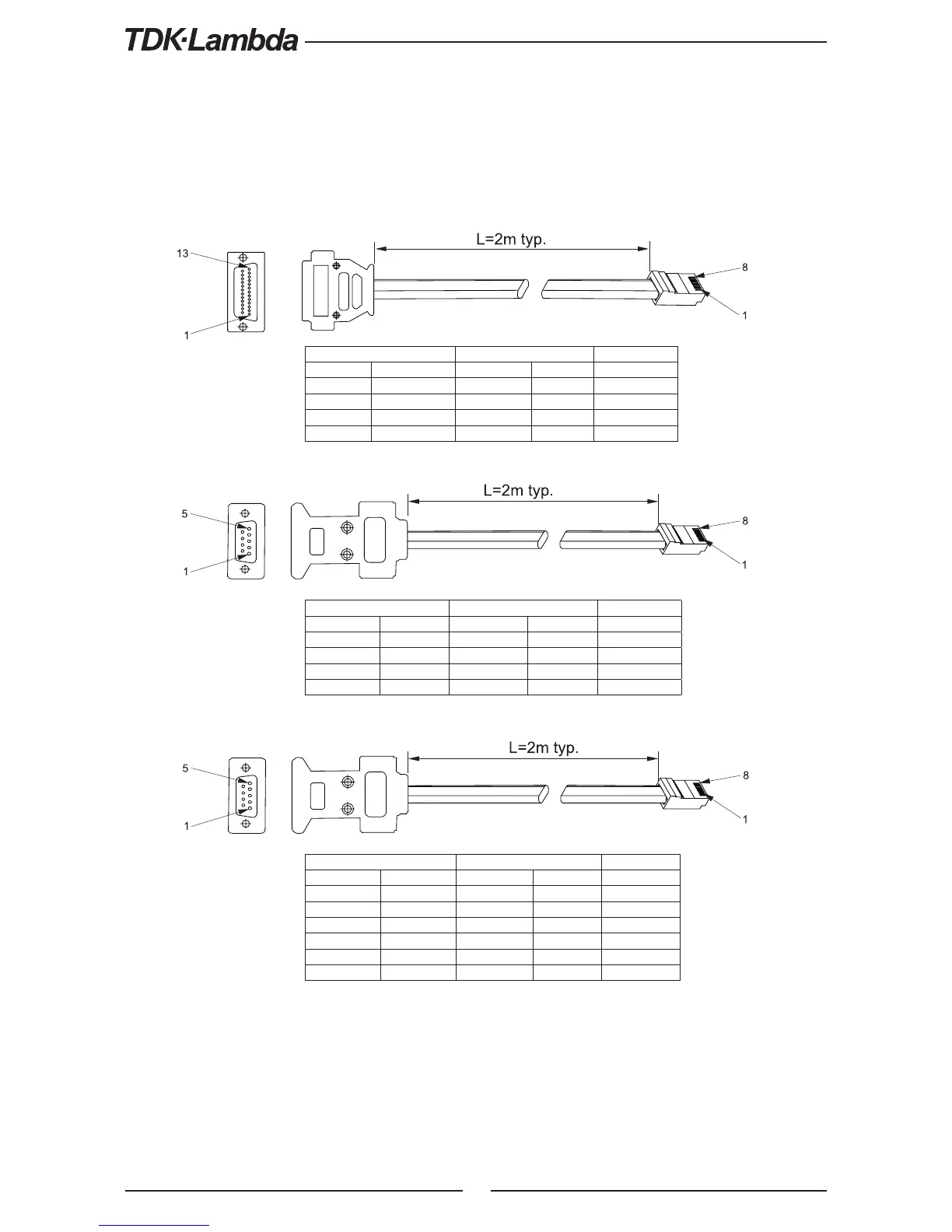

Fig.7-2: RS232 cable with DB25 connector (P/N: Z/232-25)
D08-9 CONNECTOR 8 PIN CONNECTOR REMARKS
PIN NO. NAME PIN NO. NAME
HOUSING SHIELD HOUSING SHIELD
2 RX 7 TX TWISTED
3 TX 8 RX PAIR
5 SG 1 SG
Fig.7-3: RS232 cable with DB9 connector (P/N: Z/232-9)
D08-9 CONNECTOR 8 PIN CONNECTOR REMARKS
PIN NO. NAME PIN NO. NAME
HOUSING SHIELD HOUSING SHIELD
9 TXD- 6 RXD- TWISTED
8 TXD+ 3 RXD+ PAIR
1 SG 1 SG
5 RXD- 5 TXD- TWISTED
4 RXD+ 4 TXD+ PAIR
Fig.7-4: RS485 cable with DB9 connector (P/N: Z/485-9)
7.4 Connectig Power Supply To RS232 Or RS485 BUS
Connect rear panel IN connector to the controller RS232 or RS485 port using a suitable shielded
cable. Refer to Figures 7-2, 7-3 and 7-4 for available RS232 and RS485 cables.
