TDK-Lambda Z+ series - J3 Connector Terminal and Function

46
Table 4-4: J3 connector terminals and functions

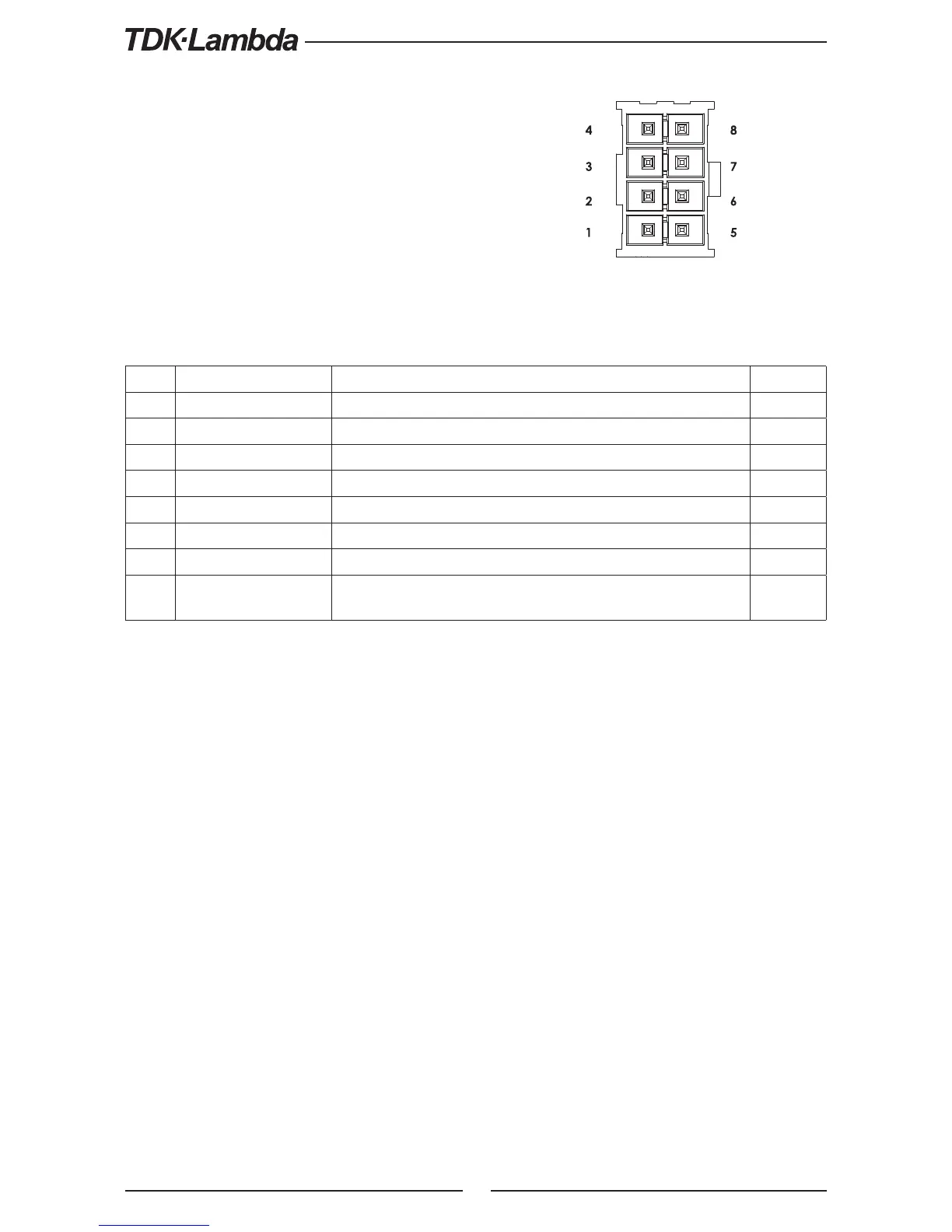

Fig.4-4: J3 connector terminals and functions
4.3.2 J3 Connector Terminal and Function
Control and monitoring signals are isolated from the
power supply output.
Connector Technical Information
• Connector type: IPL1-104-01-S-D-RA-K, SAMTEC
• Receptacle type: IPD1-04-D-K, SAMTEC
• Contact pins: CC79R-2024-01-L, SAMTEC
• Hand tool: CAT-HT-179-2024-11, SAMTEC
• Wire AWG 20-24
Pin Signal name Function Section
1 Programmed Signal 1 General Purpose Open collector Port 1 5.7.3
2 PS_OK Output for indication of the power supply status. High level is OK. 5.7.4
3 Trigger Out Trigger output, positive true, pulse width: Min. 10usec 8.5.2
4 ILC Enable /Disable the power supply output by dry-contact (short/open). 5.7.2
5 Shut Off (SO) Input for shut off control of the power supply output. 5.7.1
6 Programmed Signal 2 General Purpose Open collector Port 2 5.7.3
7 IFC_COM Isolated interface, common.
8 Trigger In CMOS level input for triggering power supply output. Positive edge,
minimum pulse width: Min. 10usec.
8.5.1
