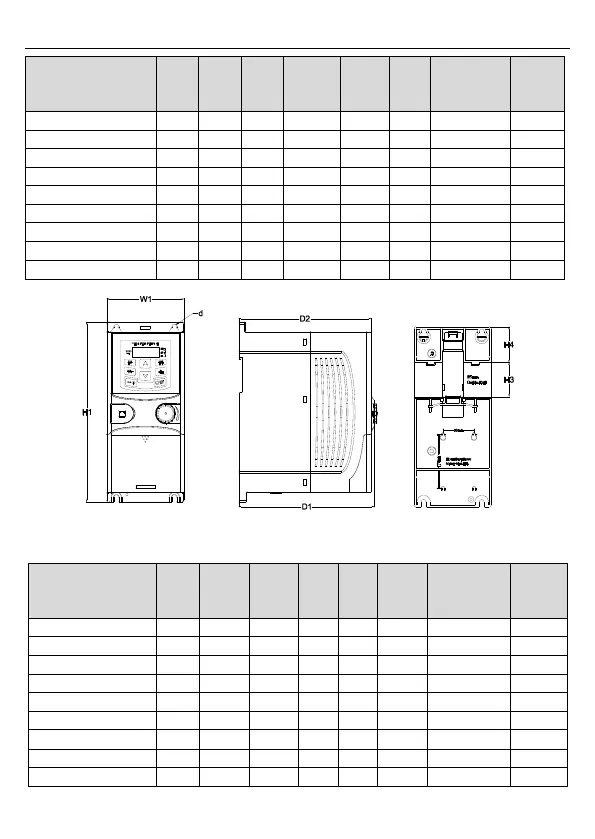

TECDrive20-EU Series Inverter Dimension drawings
-146-
Model
W1
W2
H1
H2
D1
D2
Mounting
hole
diameter (d)
Weight
(kg)
TDI20-0R4G-S2-EU
80.0
60.0
160.0
150.0
123.5
120.3
Ø 5
0.9
TDI20-0R7G-S2-EU
80.0
60.0
160.0
150.0
123.5
120.3
Ø 5
0.9
TDI20-1R5G-S2-EU
80.0
60.0
185.0
175.0
140.5
137.3
Ø 5
1.2
TDI20-2R2G-S2-EU
80.0
60.0
185.0
175.0
140.5
137.3
Ø 5
1.2
TDI20-0R4G-2-EU
80.0
60.0
185.0
175.0
140.5
137.3
Ø 5
1
TDI20-0R7G-2-EU
80.0
60.0
185.0
175.0
140.5
137.3
Ø 5
1
TDI20-0R7G-4-EU
80.0
60.0
185.0
175.0
140.5
137.3
Ø 5
1
TDI20-1R5G-4-EU
80.0
60.0
185.0
175.0
140.5
137.3
Ø 5
1
TDI20-2R2G-4-EU
80.0
60.0
185.0
175.0
140.5
137.3
Ø 5
1
Figure B-5 Rail mounting of inverters of 1PH 220V/3PH 380V (≤2.2kW) and 3PH 220V
(≤0.75kW) (Dimension unit: mm)
