TECDrive20-EU Series Inverter Dimension drawings
-147-
H1
H2
W1
W2
D2
Ø
D1

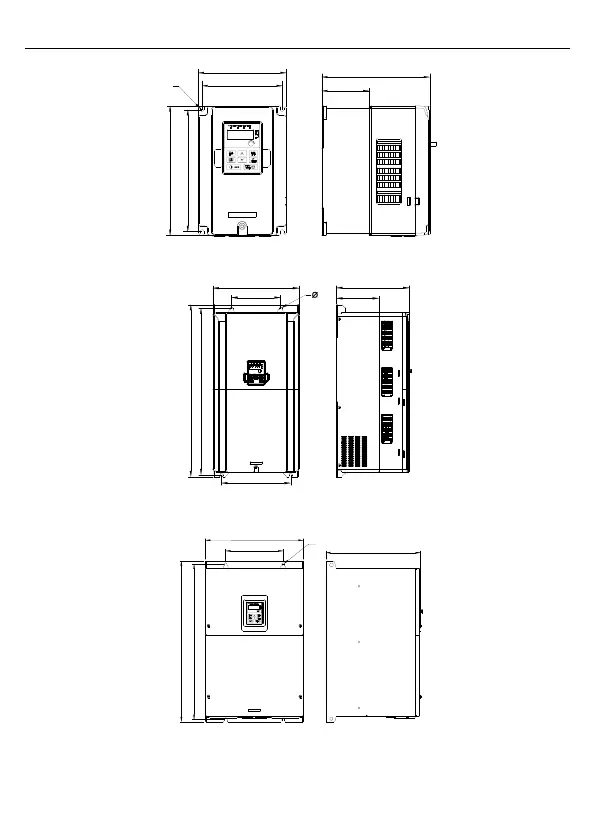

Figure B-6 Wall mounting of 3PH 400V 4–37kW and 3PH 230V 1.5–7.5kW inverters
H1
H2
W2
W1
D1
D2
W3
Figure B-7 Wall mounting of 3PH 400V 45–75kW inverters
W1
W2
H1
H2
Ø
D1
Figure B-8 Wall mounting of 3PH 400V 90–110kW inverters (Dimension (unit: mm))
