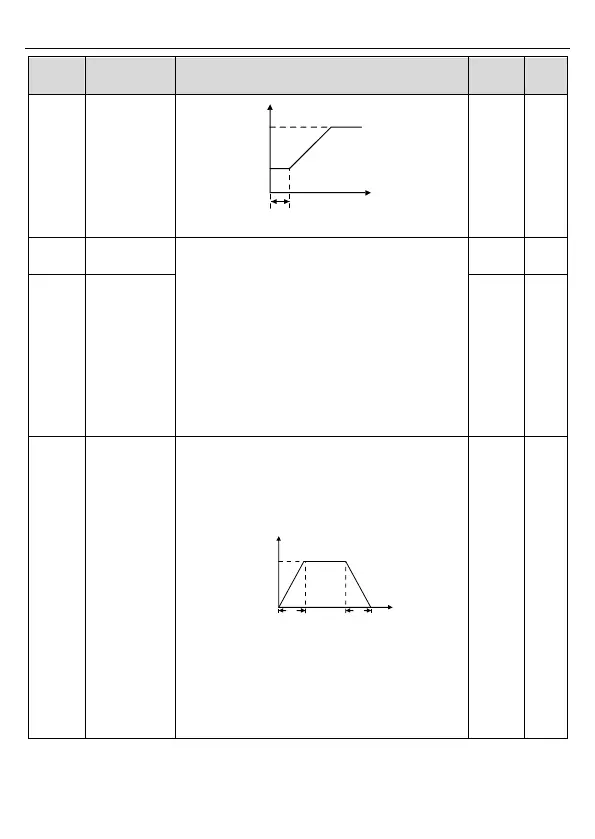

TECDrive20-EU Series Inverter Function parameters
-41-
Function
code
Name
Description
Default
Modify
Output frequency
fmax
t1
T
f1 set by P01.01
f1
t1 set by P01.02
Setting range: 0.0–50.0s
P01.03
Braking current
before starting
The inverter will carry out DC braking at the
braking current set before starting and it will
speed up after the DC braking time. If the DC
braking time is set to 0, the DC braking is invalid.
The stronger the braking current, the bigger the
braking power. The DC braking current before
starting is the percentage of rated current of the
inverter.
Setting range of P01.03: 0.0–100.0% (rated
current peak of the inverter)
Setting range of P01.04: 0.00–50.00s
0.0%
◎
P01.04
Braking time
before starting
0.00s
◎
P01.05
Acceleration/
deceleration
selection
The changing mode of the frequency during
start-up and running.
0: Linear type
The output frequency increases or decreases
linearly.
fmax
Output frequency
t1 t2
T
1: S curve
The output frequency increases or decreases
progressively according to the S curve. The S
curve type is generally applied in elevators,
conveyors, and other application scenarios
where smoother start or stop is required.
0
◎
