TECDrive20-EU Series Inverter Function parameters
-42-
Function
code
Name
Description
Default
Modify

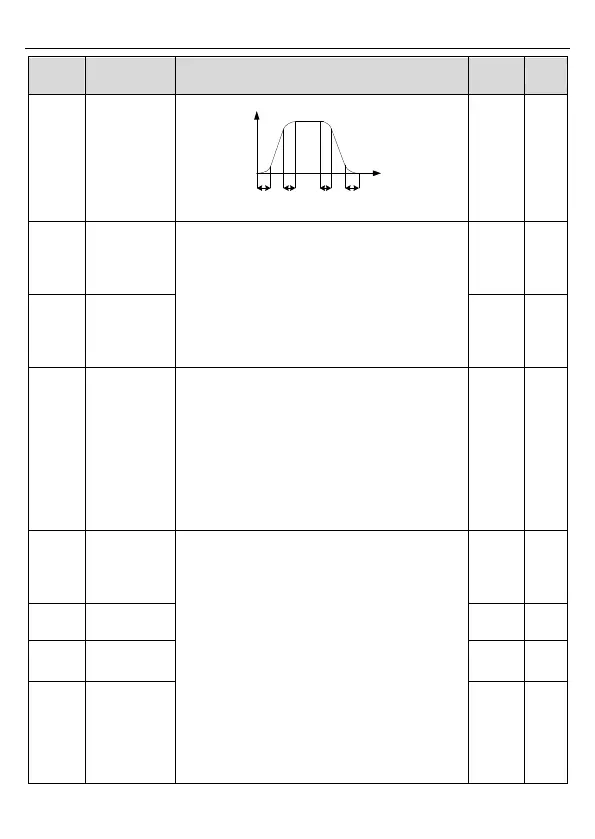

Output frequency
t
t1 t2 t1 t2
t1=P01.06; t2=P01.07
P01.06
Acceleration
time of the
starting step of
S curve
Setting rage: 0.0–50.0s
Note: Effective when P01.05 is set to 1.
0.1s
◎
P01.07
Deceleration
time of the
ending step of
S curve
0.1s
◎
P01.08
Stop selection
0: Decelerate to stop: after the stop command
becomes valid, the inverter decelerates to
reduce the output frequency during the set time.
When the frequency decreases to 0Hz, the
inverter stops.
1: Coast to stop: after the stop command
becomes valid, the inverter ceases the output
immediately. And the load coasts to stop at the
mechanical inertia.
0
○
P01.09
Starting
frequency of
DC braking
while stop
Starting frequency of DC braking: start the DC
braking when running frequency reaches starting
frequency determined by P01.09.
Waiting time before DC braking: inverters block
the output before starting the DC braking. After
this waiting time, the DC braking will be started
so as to prevent over-current fault caused by DC
braking at high speed.
DC braking current: the value of P01.11 is the
percentage of rated current of inverter. The
bigger the DC braking current is, the greater the
braking torque is.
DC braking time: the retention time of DC
braking. If the time is 0, the DC braking is invalid,
0.00Hz
○
P01.10
Stop brake
waiting time
0.00s
○
P01.11
Stop DC
braking current
0.0%
○
P01.12
Stop DC
braking time
0.00s
○
