TECDrive20-EU Series Inverter Function parameters
-54-
Function
code
Name
Description
Default
Modify
add the temperature of the inverter and decrease
the efficiency.

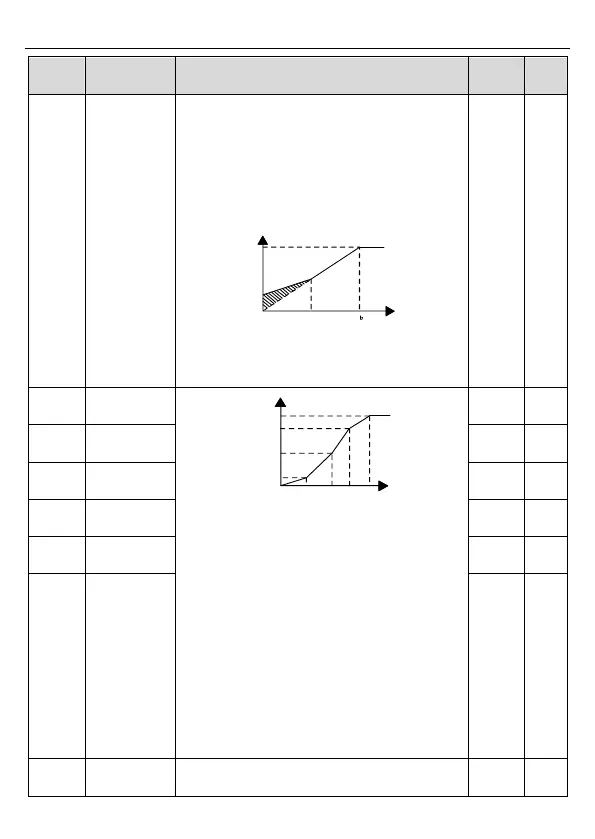

When the torque boost is set to 0.0%, the
inverter is automatic torque boost.
Torque boost threshold: below this frequency
point, the torque boost is valid, but over this
frequency point, the torque boost is invalid.
Output voltage
Output
frequency
Cut-off
boost
b
f
f
v
v
Setting range of P04.01: 0.0%: (automatic)
0.1%–10.0%
Setting range of P04.02: 0.0%–50.0%
P04.03
V/F frequency
point 1
Output voltage
Output
frequency
V1
V2
V3
f1 f2 f3
100.0%
b
f
b
V
When P04.00 =1, the user can set V//F curve
through P04.03–P04.08.
V/F is generally set according to the load of the
motor.
Note: V1<V2<V3, f1<f2<f3. Too high low
frequency voltage will heat the motor excessively
or damage. Overcurrent stall or overcurrent
protection may occur.
Setting range of P04.03: 0.00Hz–P04.05
Setting range of P04.04, P04.06 and P04.08:
0.0%–110.0% (rated motor voltage)
Setting range of P04.05: P04.03–P04.07
Setting range of P04.07: P04.05–P02.02 (rated
motor voltage frequency)
0.00Hz
○
P04.04
V/F voltage
point 1
0.0%
○
P04.05
V/F frequency
point 2
0.00Hz
○
P04.06
V/F voltage
point 2
0.0%
○
P04.07
V/F frequency
point 3
0.00Hz
○
P04.08
V/F voltage
point 3
0.0%
○
P04.09
V/F slip
compensation
This function code is used to compensate the
change of the rotation speed caused by load
100.0%
○
