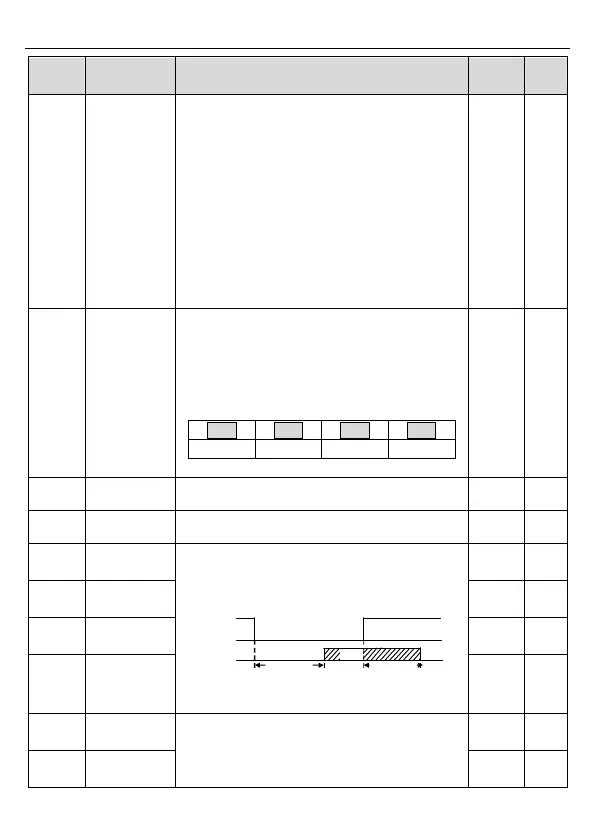

TECDrive20-EU Series Inverter Function parameters
-65-
Function
code
Name
Description
Default
Modify
18: Setting count value arrival
19: Defined count value arrival
20: External fault valid
21: Zero-speed output (output in both running
and stopping states)
22: Running time arrival
23: Modbus communication virtual terminals
output
24–25: Reserved
26: Establishment of DC bus voltage
27: STO action
28–30: Reserved
P06.05
Polarity
selection of
output
terminals
The function code is used to set the pole of the
output terminal.
When the current bit is set to 0, input terminal is
positive.
When the current bit is set to 1, input terminal is
negative.
BIT3
BIT2
BIT1
BIT0
RO2
RO1
Reserved
Y1
Setting range: 0–F
0
○
P06.06
Y1 open delay
time
Setting range: 0.000–50.000s
0.000s
○
P06.07
Y1C off delay
time
Setting range: 0.000–50.000s
0.000s
○
P06.10
RO1 switching
on delay time
The function code defines the corresponding
delay time of the electrical level change during
the programmable terminal switching on and off.
RO electric level
RO valid Invalid
Switch on
delay
invalid
Valid
Switch off
delay
Setting range: 0.000–50.000s
0.000s
○
P06.11
RO1 switching
off delay time
0.000s
○
P06.12
RO2 switching
on delay time
0.000s
○
P06.13
RO2 switching
off delay time
0.000s
○
P06.14
AO1 output
selection
0: Running frequency
1: Set frequency
2: Ramp reference frequency
3: Running speed (relative to twice the motor
0
○
P06.15
AO2 output
selection
0
○
