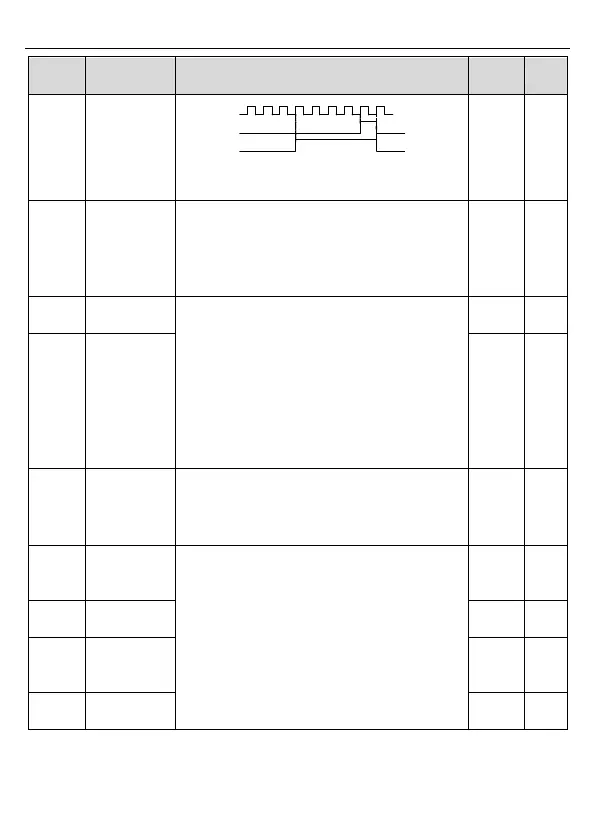

TEC TECDrive20-EU Series - Page 82

TECDrive20-EU Series Inverter Function parameters
-77-
Function
code
Name
Description
Default
Modify
Y1
RO1, RO2
S terminal
Reach the set
counting value
Reach the designated
counting value
Setting range of P08.25: P08.26–65535
Setting range of P08.26: 0–P08.25
P08.27
Setting running
time
Pre-set running time of the inverter. When the
accumulative running time achieves the set time,
the multi-function digital output terminals will
output the signal of "running time arrival".
Setting range: 0–65535min
0m
○
P08.28
Time of fault
reset
The time of the fault reset: set the fault reset time
by selecting this function. If the reset time
exceeds this set value, the inverter will stop for
the fault and wait to be repaired.
The interval time of the fault reset: The interval
between the time when the fault occurs and the
time when the reset action occurs.
Setting range of P08.28: 0–10
Setting range of P08.29: 0.1–100.0s
0
○
P08.29
Interval time of
automatic fault
reset
1.0s
○
P08.30
Frequency
decreasing
ratio in drop
control
The output frequency of the inverter changes as
the load. And it is mainly used to balance the
power when several inverters drive one load.
Setting range: -50.00Hz–50.00Hz
0.00Hz
○
P08.32
FDT1 electrical
level detection
value
When the output frequency exceeds the
corresponding frequency of FDT electrical level,
the multi-function digital output terminals will
output the signal of "frequency level detect FDT"
until the output frequency decreases to a value
lower than (FDT electrical level—FDT retention
detection value) the corresponding frequency,
the signal is invalid. Below is the waveform
diagram:
50.00
Hz
○
P08.33
FDT1 retention
detection value
5.0%
○
P08.34
FDT2 electrical
level detection
value
50.00
Hz
○
P08.35
FDT2 retention
detection value
5.0%
○
