Technicolor TD5130 User Manual

Status
The statistics is automatically refreshed every 10 seconds. To stop automatic refresh,
click the Stop Refresh button.

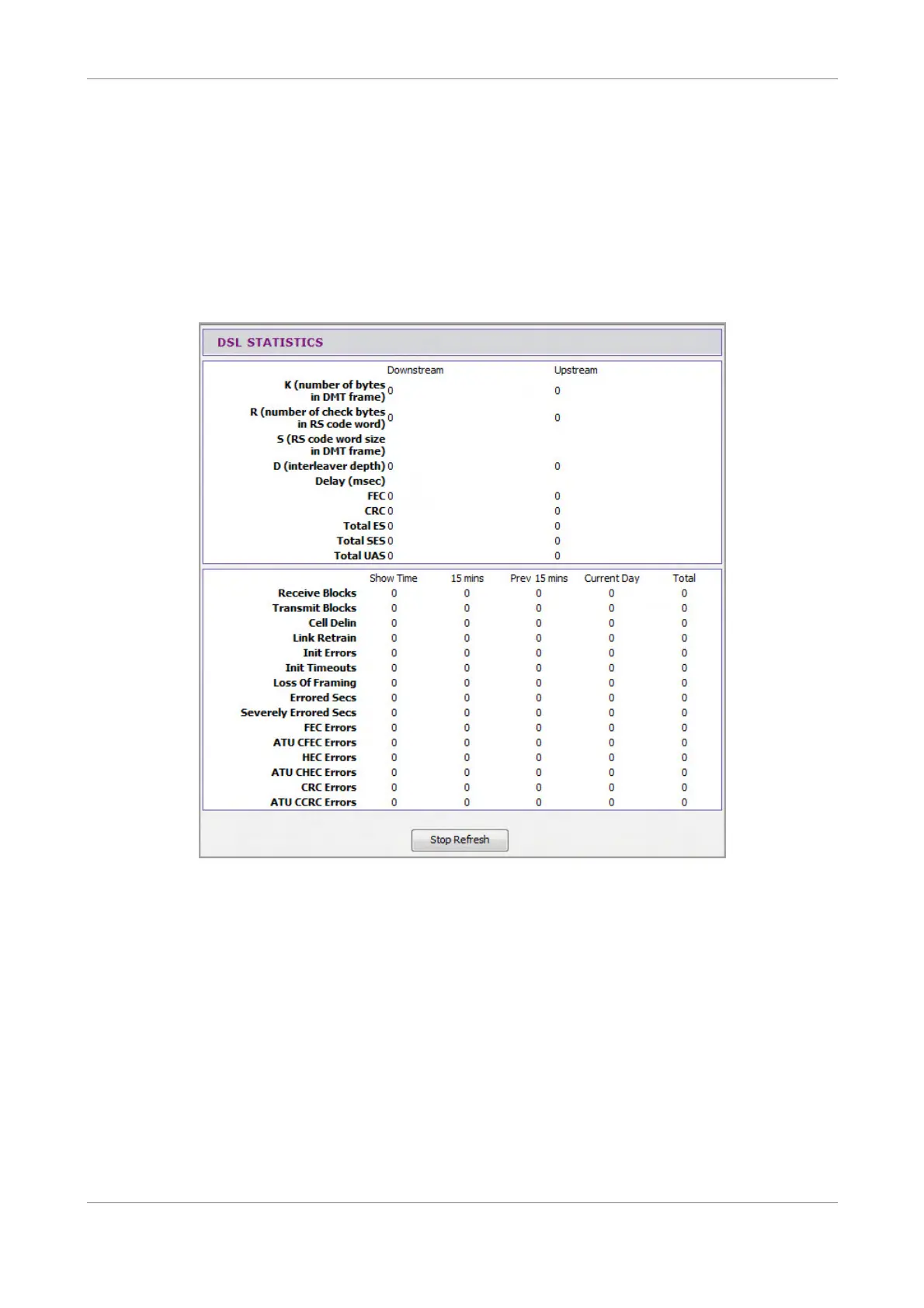

8.10.2 Statistics > DSL Statistics
This page displays the transmission and reception statistics of the DSL line.
To access the DSL Statistics page, click STATUS > Statistics > DSL Statistics or click the
DSL Statistics button.
The statistics is automatically refreshed every 10 seconds. To stop automatic refresh,
click the Stop Refresh button.
Wireless ADSL2+ Gateway
101

Technicolor TD5130 Specifications

General

Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 70°C
ADSL Standards	ANSI T1.413 Issue 2
ADSL2 Standards	ITU G.992.3 (G.dmt.bis) Annex A
ADSL2+ Standards	ITU G.992.5 Annex A
Wireless	802.11b/g
Ethernet Ports	4 x 10/100
USB Ports	1 x USB 2.0
VoIP	No
Security	WEP, WPA, WPA2
