Technicolor TD5130 User Manual

Configure the Computer

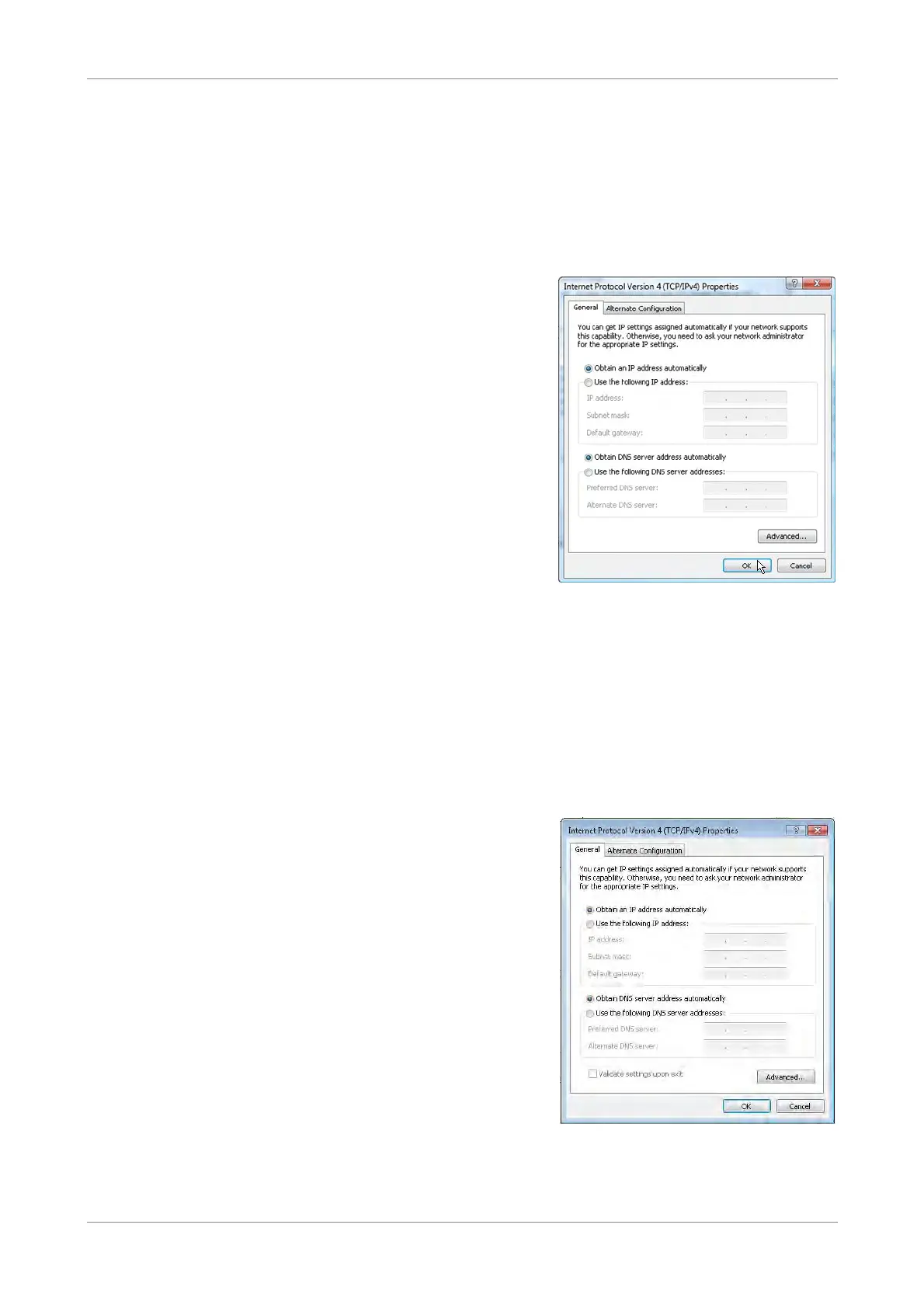

3.2 Windows Vista
If you are using Windows
®
Vista, follow the instructions below to configure your
computer.
1. Click Start > Control Panel > Network and
Internet Connections > Network
Connections.
2. Right-click Local Area Connection, then click
Properties.
3. On the General tab, make sure that Internet
Protocol (TCP/IP) is checked. If not, check it
to enable the Properties button.
4. Select Internet Protocol (TCP/IP), and then
click Properties.
5. Select Obtain an IP Address automatically
and Obtain DNS server address
automatically.
6. Click OK.
General Page
3.3 Windows 7
If you are using Windows
®
7, follow the instructions below to configure your
computer.
1. Click Start > Control Panel > Network &
Sharing Center.
2. Click Local Area Connection.
3. Click Properties.
4. On the network components list, make sure
that Internet Protocol (TCP/IP) is checked. If
not, check it to enable the Properties
button.
5. Select Internet Protocol (TCP/IP), and then
click Properties.
6. On the General tab, select Obtain an IP
Address automatically and Obtain DNS
server address automatically.
7. Click OK.
General Page
Wireless ADSL2+ Gateway 15

Technicolor TD5130 Specifications

General

Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 70°C
ADSL Standards	ANSI T1.413 Issue 2
ADSL2 Standards	ITU G.992.3 (G.dmt.bis) Annex A
ADSL2+ Standards	ITU G.992.5 Annex A
Wireless	802.11b/g
Ethernet Ports	4 x 10/100
USB Ports	1 x USB 2.0
VoIP	No
Security	WEP, WPA, WPA2
