Technicolor TD5130 User Manual

Advanced

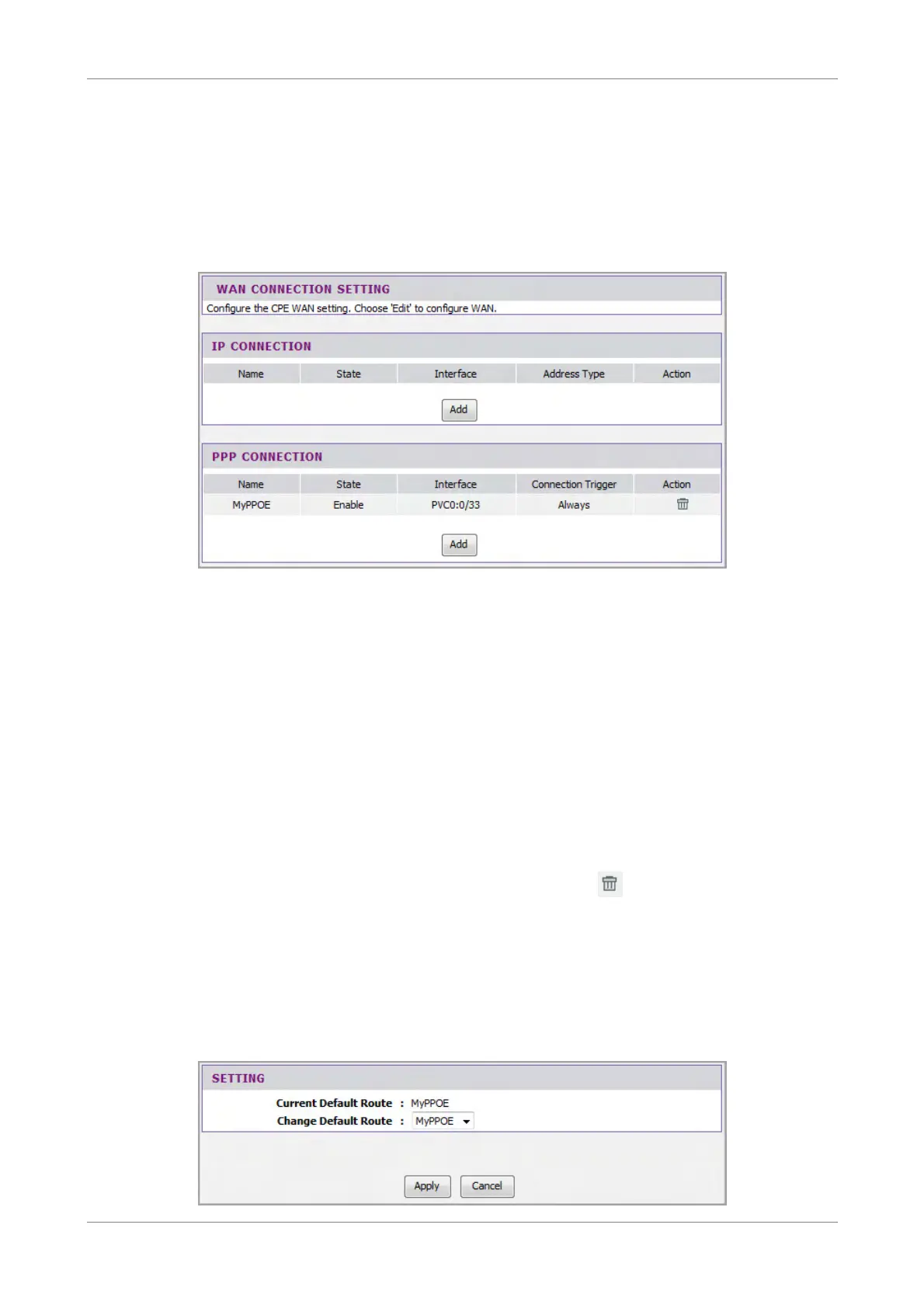

6.2.2 IP/PPP Config
This page allows you to create multiple Wide Are Networks (WAN) and manually add
an IP or a PPP connection.
To access the IP/PPP Config page, click Advanced > Multi-WAN > IP/PPP Config or click
the WAN Config button.
To add an IP or PPP connection, do the following:
1. Click the Add button of the corresponding connection that you want to add.
The connection screen appears; required settings vary depending on the type
of connection that you want to add.
2. On the Interface field, select the PVC.
3. Enter the necessary connection settings. See “Protocol” on page 22 for
connection configuration details.
4. Click the Apply button to save your changes or click the Cancel button to
discard your changes.
To delete an IP or PPP connection, click the corresponding icon.
6.2.3 Default Route
This page allows you to change the default route of your Wireless Gateway.
To access the Default Route page, click Advanced > Multi-WAN > Default Route or
click the Default Route button.
Wireless ADSL2+ Gateway 46

Technicolor TD5130 Specifications

General

Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 70°C
ADSL Standards	ANSI T1.413 Issue 2
ADSL2 Standards	ITU G.992.3 (G.dmt.bis) Annex A
ADSL2+ Standards	ITU G.992.5 Annex A
Wireless	802.11b/g
Ethernet Ports	4 x 10/100
USB Ports	1 x USB 2.0
VoIP	No
Security	WEP, WPA, WPA2
