Technicolor TD5130 User Manual

Advanced

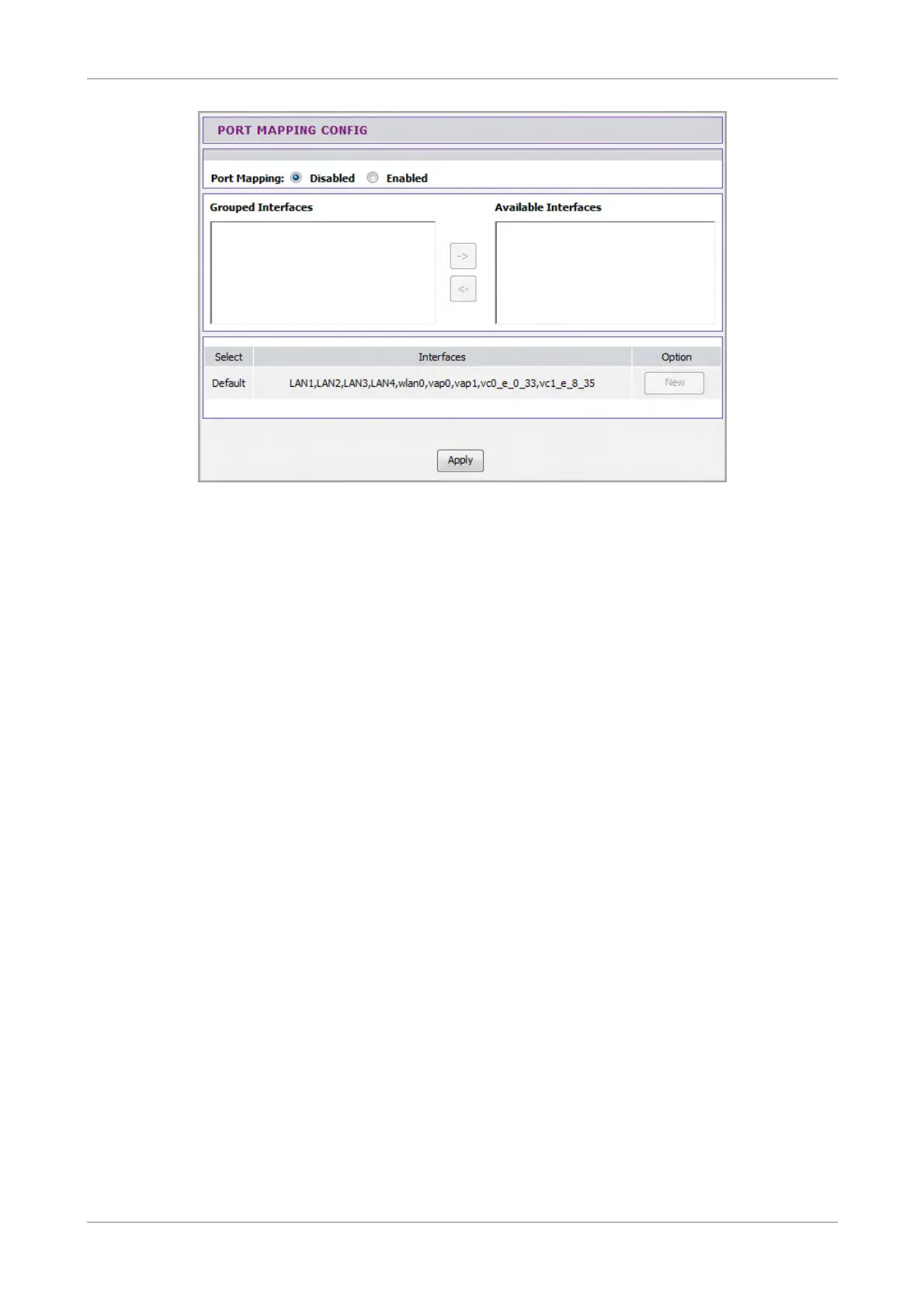

Port Mapping — Select Enabled to enable port mapping.
To Create New Groups
1. Click the New button. An empty group appears on the table.
2. Click the radio button to select the empty group.
3. Add members to the group. To do so, select an interface from the Available
Interfaces panel. Then click the <- button to add the selected interface to the
Grouped Interfaces panel.
4. Repeat step 3 to add more members to the group.
5. Click the Apply button to save your changes.
To Modify Groups
1. Click the radio button to select the group to modify.
2. To add or remove a member from the group, select the interface, then click
the <- or -> buttons.
3. Click the Apply button to save your changes.
To Delete Groups
Click the corresponding Delete button of the group to delete. The members of that
group automatically revert back to the Default group.
Wireless ADSL2+ Gateway 77

Technicolor TD5130 Specifications

General

Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 70°C
ADSL Standards	ANSI T1.413 Issue 2
ADSL2 Standards	ITU G.992.3 (G.dmt.bis) Annex A
ADSL2+ Standards	ITU G.992.5 Annex A
Wireless	802.11b/g
Ethernet Ports	4 x 10/100
USB Ports	1 x USB 2.0
VoIP	No
Security	WEP, WPA, WPA2
