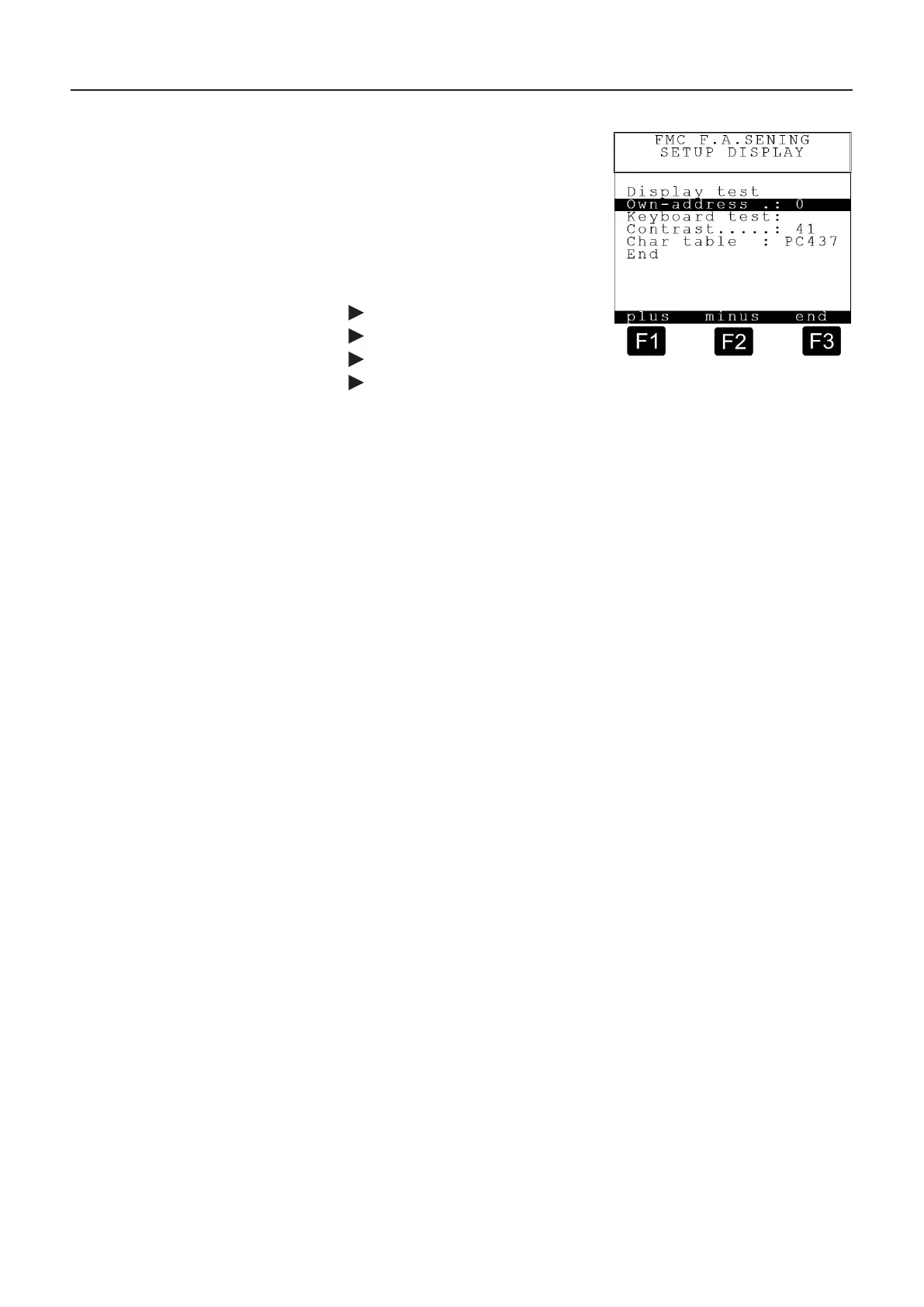

The following display appears:
<Display test>:
All ASCII characters are displayed;
the test ends automatically.
<Own-address>:
(CAN bus address) The <F1> and
<F2> keys, “plus” and “minus” are
then used to set the respective CAN
address. It is stored with <F3> “End”.
Display Interface 1: address 0
Display Interface 2: address 1
Display Interface 3: address 2
Display Interface 4: address 3
Node number ‘0’ must be set for the display of the ‘Main Unit/Display’ module
MLMAINDISP. For an additional display in the case of, for example, ‘left/left/
right’ tank truck, set node number ‘1’.
If a chip card reader CCR exists, it must always be connected to the display
with the node number ‘0’!
<Keyboard test>:
A keyboard test can be carried out with this menu item. With each actuation of a
test can be exited by pressing the <ENTER> key twice.
<Contrast>:
The range of values for the contrast of the display is (0 – 100) and is adjusted
with:
<F1> for ‘lower contrast’, or with
<F2>
<F3> for ‘End’.
(default value about: ‘40’)
The display interface features automatic contrast adjustment, dependent on the
temperature. Correction is not normally necessary.
<Char table>:
Setting of the character sets (PC437, PC852, PC866) with <F1> for "plus" and
with <F2> for "minus" and <F3> for "end" and adoption of the newly-set value.
(default value: "PC437").
The preset character set may be changed only after consulting F. A.
Sening!
<End>:
The setup / test is terminated by selecting the line: "End" with the function keys
and pressing the <Enter> key.
After ending the setup settings/ tests, the MultiLevel system should be switched
‘OFF’ and ‘ON’ again.
