MultiLevel Instruction Manual Description of the Level Gauging System
5.6.2. Diagram of a typical volumetric measurement curve (created from the
gauge table)

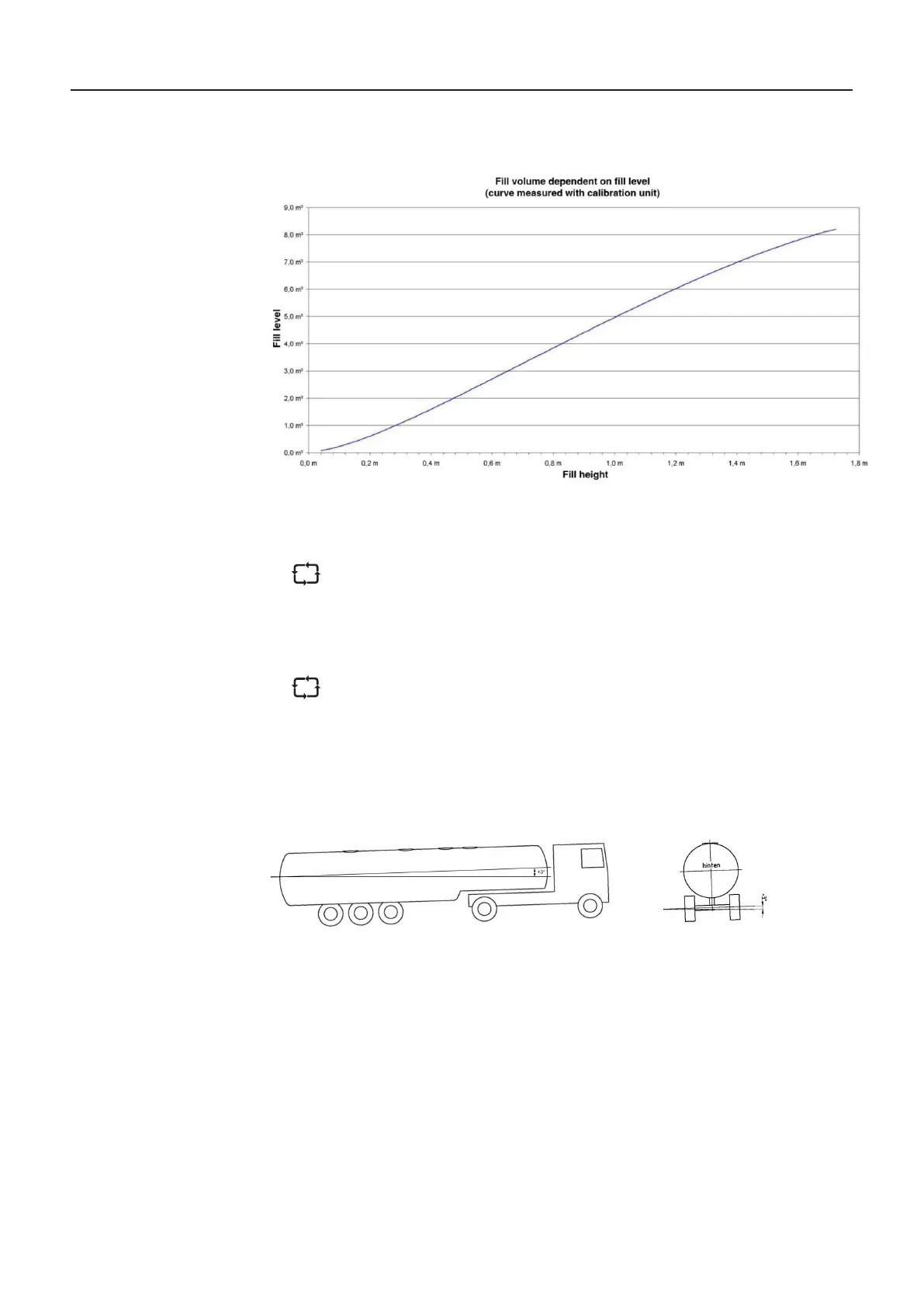

Figure 13: Graph of a typical volumetric measurement curve
The graph shown above is stored as a table in the MultiLevel. Each height is
5.7. Explanation of the inclination correction
During the delivery of a compartment the vehicle does not usually stand in the
normal position of 0°. It is therefore necessary to make an inclination correc-
are measured in the longitudinal (pitch) and transverse (roll) directions by an
inclination sensor. For the determination of the inclination correction tables, a
computational procedure is used that is based on a volume model of the tank
compartment created in the 3D-CAD system.
The inclination table is determined only once for each type of measuring container.
Positive Pitch Positive Roll
Figure 14: Inclination
