6.2. Transporting the level sensors
Care must be taken in every case before assembly that the level sensors do
not bend. On no account may the level sensors be grasped centrally or carried
without supporting the sensor head.

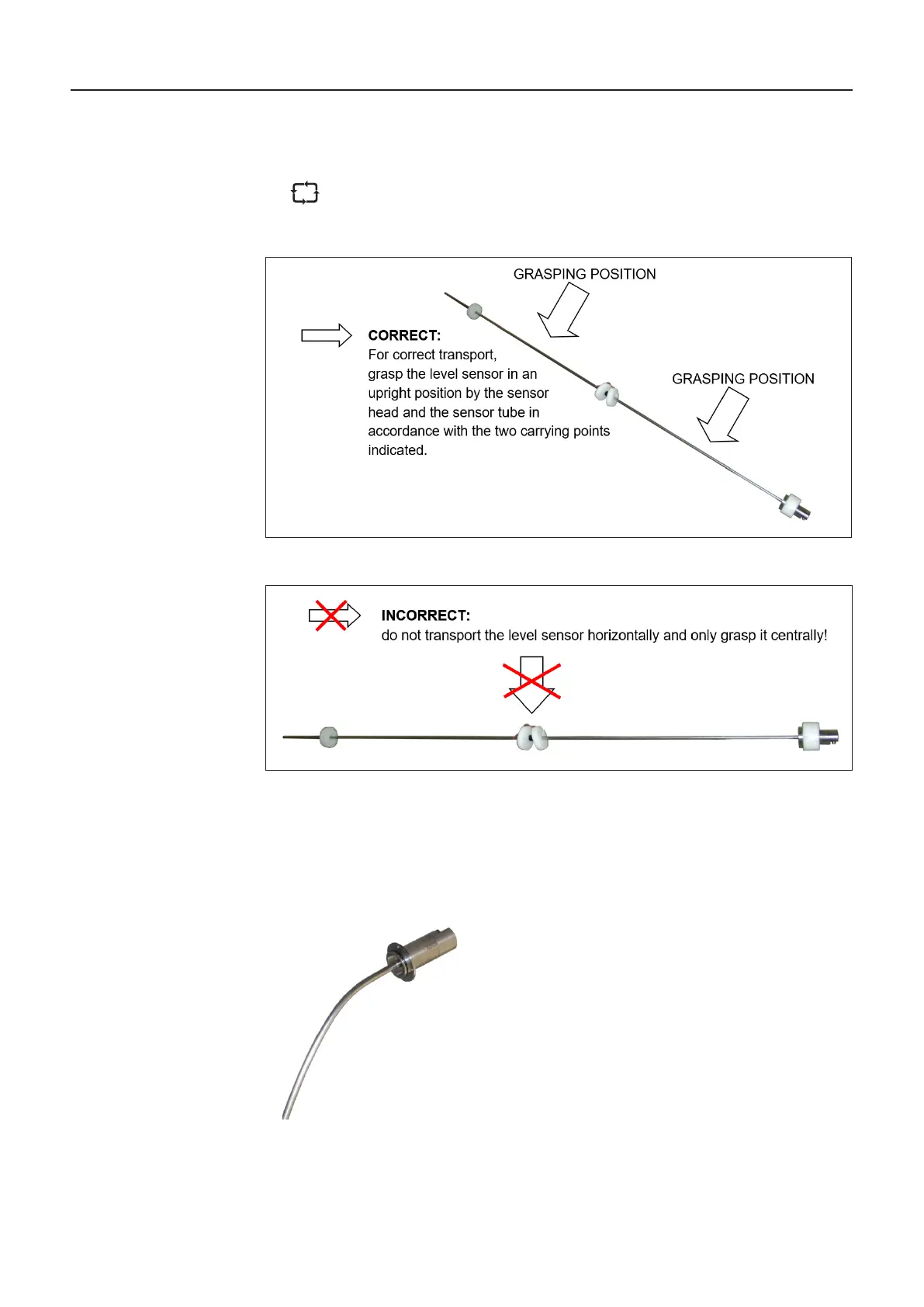

Figure 22: Correct transport
Figure 23: Incorrect transport
☹
Result: In the case of incorrect transport the level sensors can bend very quick-
ly and are then useless for the further installation and may no longer be used.
Figure 24: Result of incorrect transport
MultiLevel Instruction Manual Installation of the mechanical level sensor components
