Figure 11: Tank shapes
Calibration unit
The calibration of the tank compartments is carried out with the aid of the calibration system.
Following calibration, the calibration data is transmitted to the tank truck by means of a chip
card.
The creation of the gauge tables for the tank compartments takes place in the normal position,
which is normally 0° in both directions. Each tank truck must have a reference surface, with
which the vehicle can be brought back into the normal position.
Details for the calibration unit and calibration can be found in the document "MultiLevel
calibration instructions", order number DOK-480.

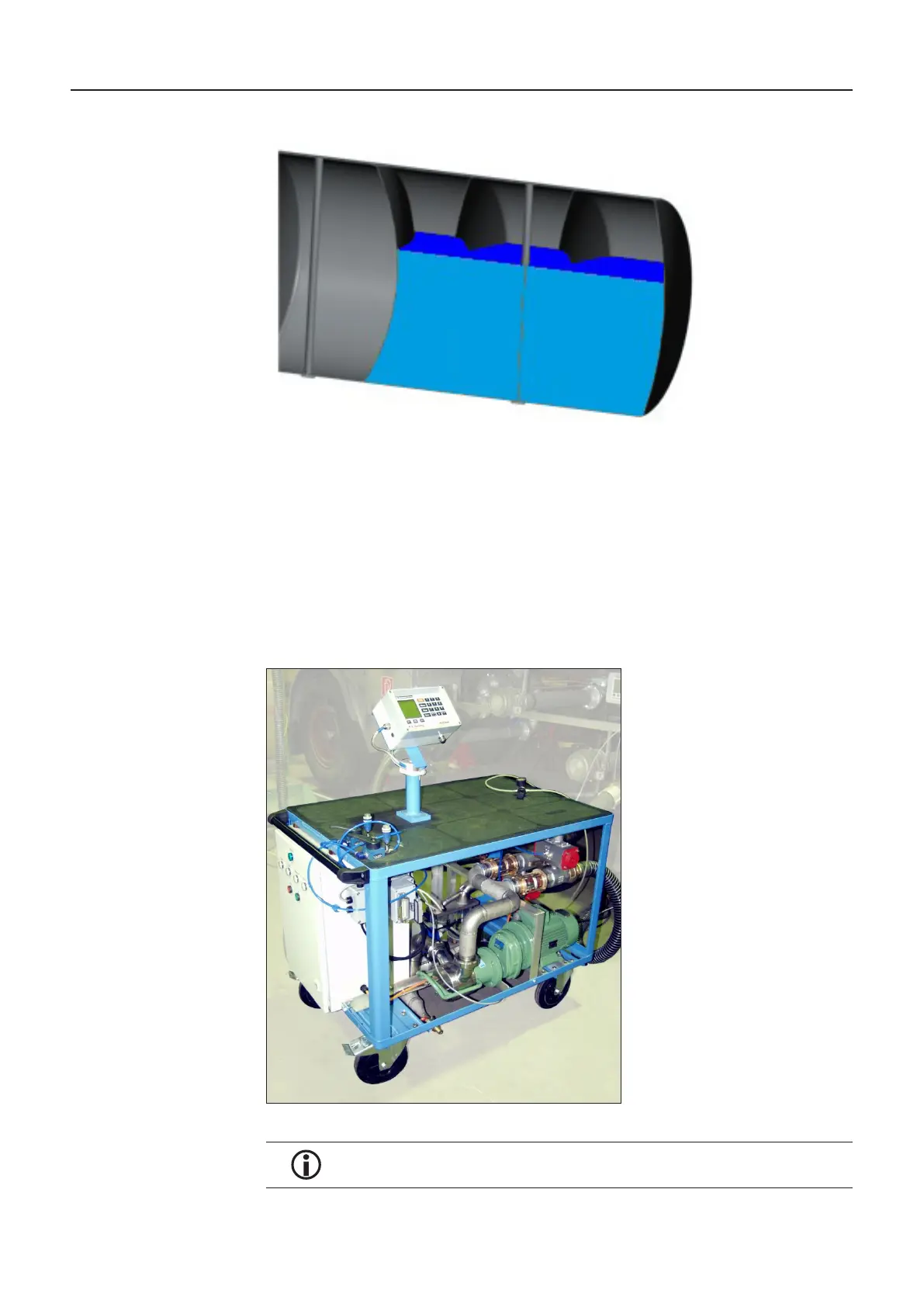

Figure 12: Calibration system
For further information compare document "MultiLevel calibration instructions"
DOK-480.
MultiLevel Instruction Manual Description of the Level Gauging System
