6.1. REAR PANEL DISASSEMBLY

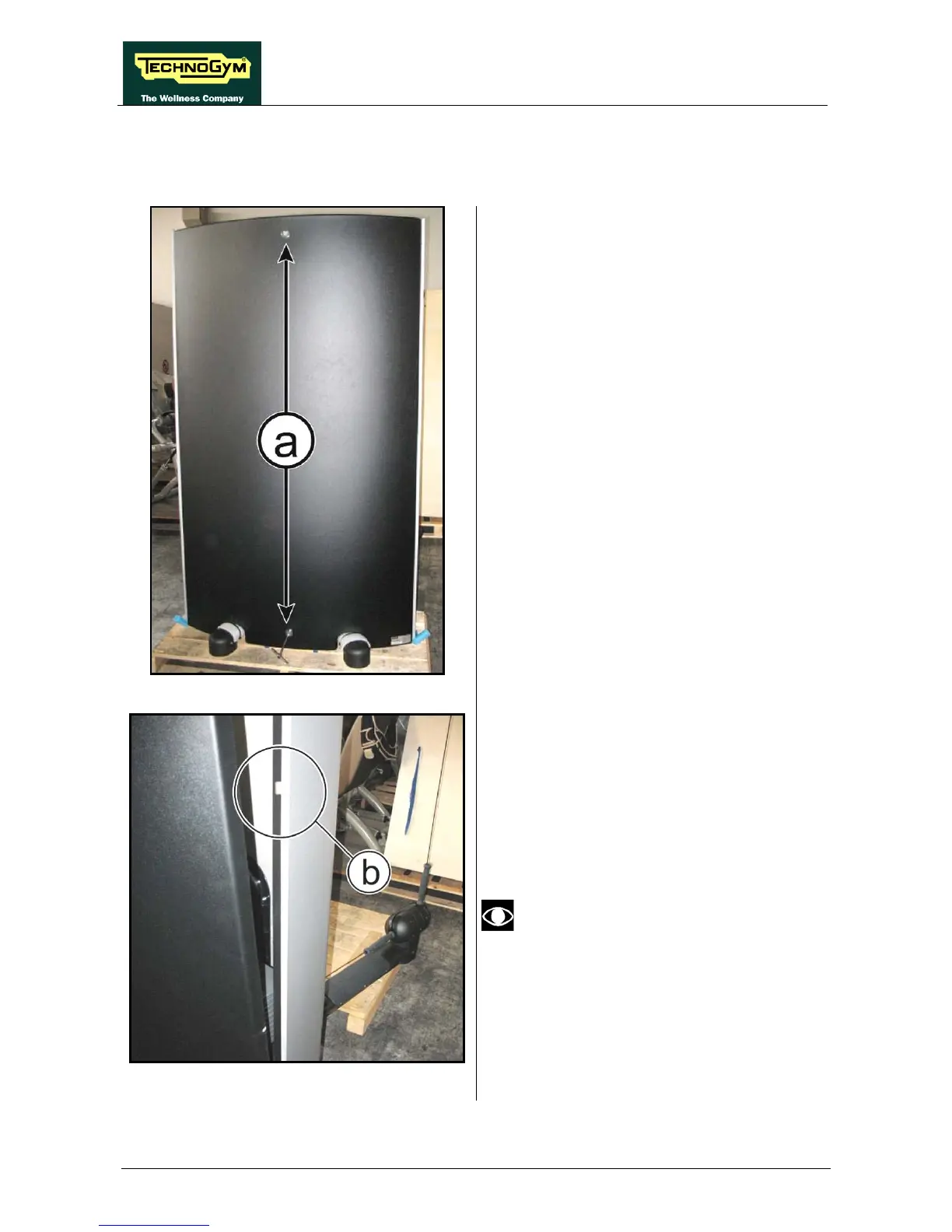

Figure 6.1-1
1. Unscrew the 2 screws (a), backing off first
of all the lower one and then the higher,
using a 6mm hexagonal wrench.
2. Remove the panel.
Figure 6.1-2
To reassemble the rear panel, follow the
disassembly instructions in reverse order
Be careful during the reassembly to
insert the panel in the proper slot and
bracket (b).
