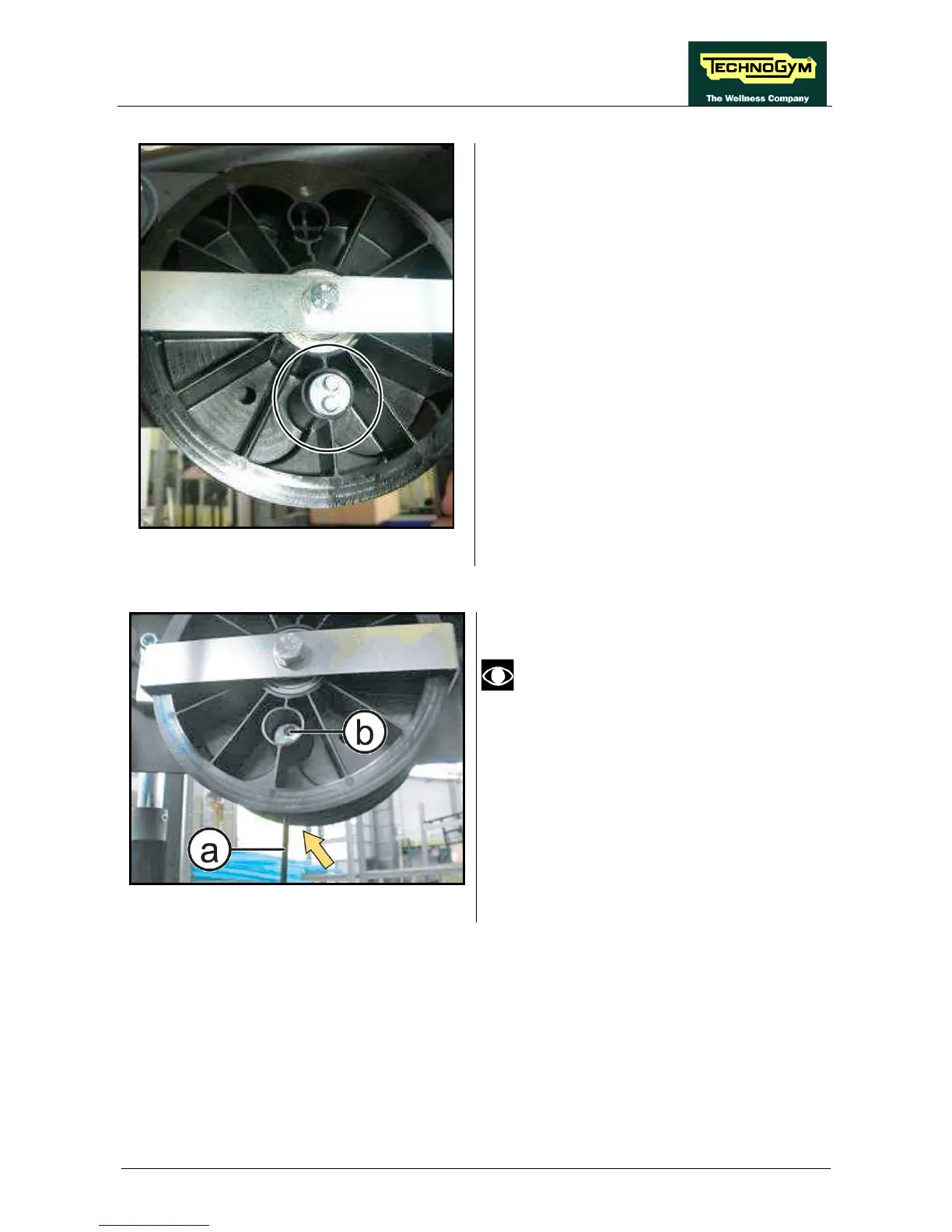

Figure 6.3-2
2. Back off the two grub screws of the cable-
retainer shown in figure and pull the cable
off.
To reassemble the rear cable, follow the
instructions in the following paragraph.
6.3.2. REAR CABLE REASSEMBLY
Figure 6.3-3
In case of replacing the cable, cut the
new one 2300mm long.
1. Lower the cross on the weight stack.
2. Insert the cable (a) through the hole in the
central race of the cam, up to it is completely
inserted in the cable-retainer.
3. Lock down the two grub screw (b), using a
torque wrench set for 14 Nm.
