KINESIS ONE: Service & Maintenance Manual rev. 2.1
Page 7.3

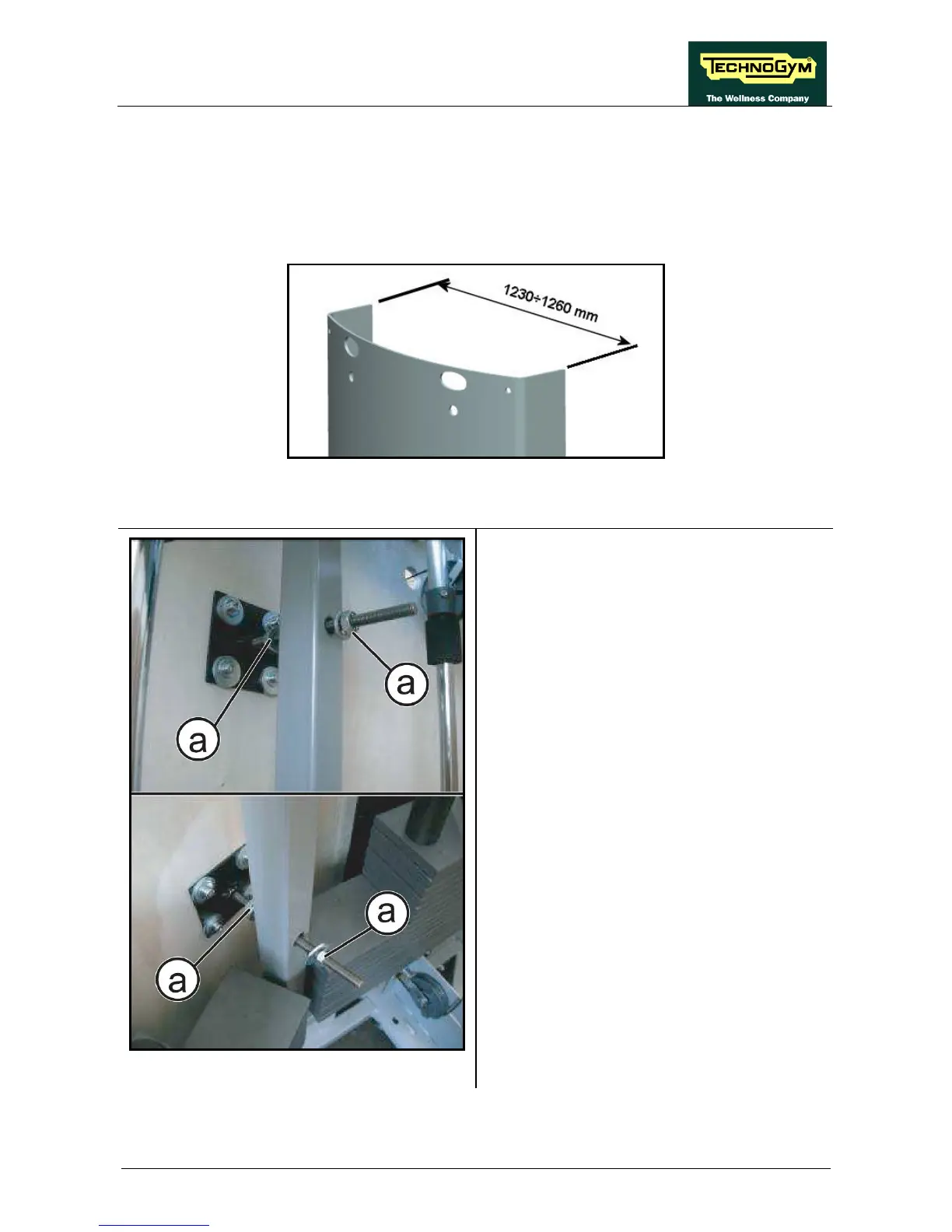

7.3. ADJUSTING THE FRONT PANEL POSITION
In some cases, the front guard of the equipment may be more or less opening at the back than the
correct dimension required (between 1230-1260 mm).
To eliminate such warping, two brackets assembled on the inside of the front guard, shown in the
figure at left below, adjust as follows:
Figure 7.3-1
Carry out the operations described in
paragraphs: 6.1. “Rear panel disassembly”.
1. Loosen the 2 nuts (a) on the threaded bar.
Continued on following page →
