KINESIS ONE: Service & Maintenance Manual rev. 2.1
Page 7.4

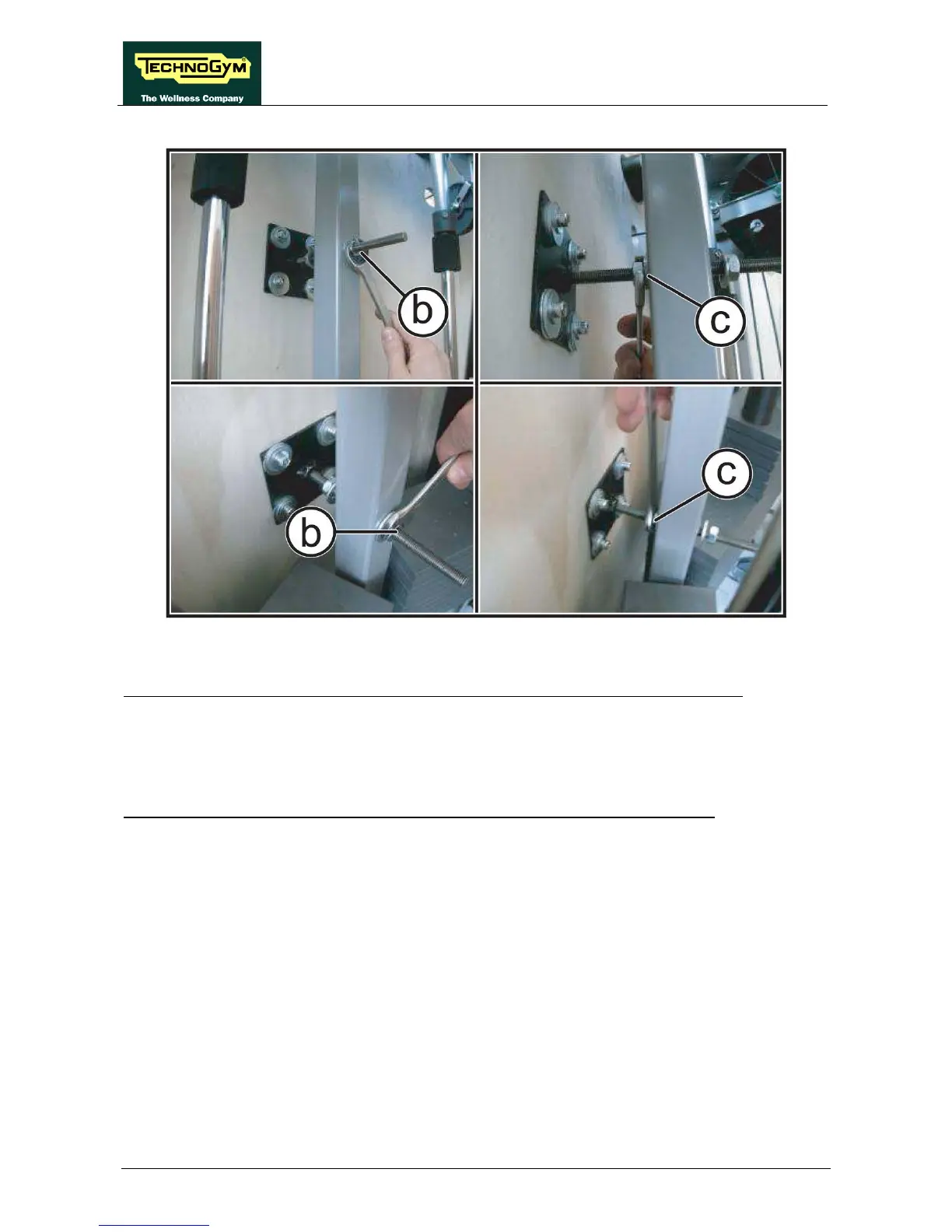

Figure 7.3-2
To augment the dimension of the opening and move the front guard closer to the frame:
1. Act on the rear nut (b), as shown in the figure and then lock down the opposite nut.
To reduce the dimension of the opening, move the front guard away from the frame:
2. Act on the front nut (c), as shown in the figure and then lock down the opposite nut.
