KINESIS ONE: Service & Maintenance Manual rev. 2.1
Page 6.19
6.7. CAM DISASSEMBLY

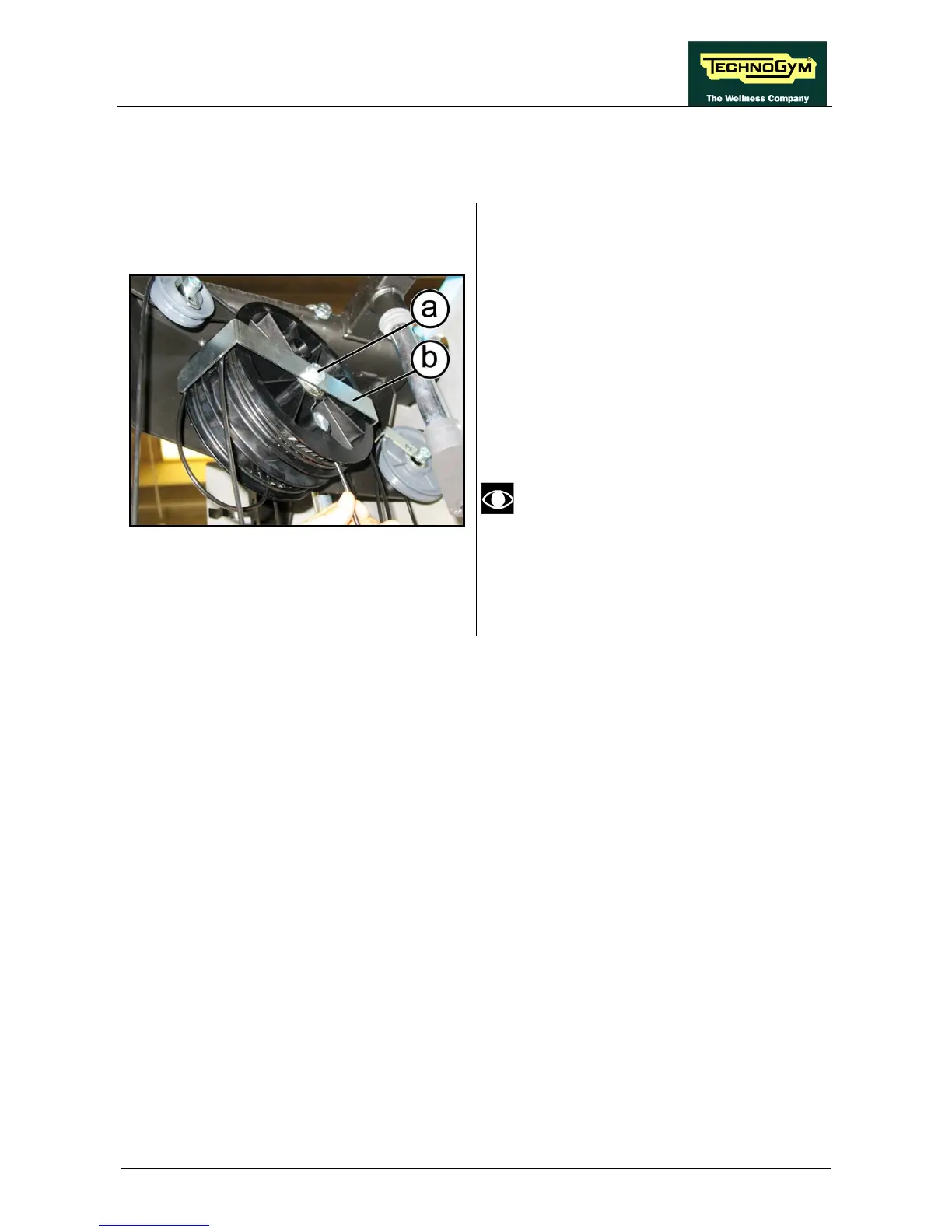

Figure 6.7-1
Carry out the operations described in
paragraphs: 6.1. “Rear panel disassembly”.
1. Disconnect the cables connected to the cam
as described at paragraphs 6.3. “Rear cable
disassembly” 6.4. “Removing ”.
2. Back off the central screw (a) using a 17mm
wrench.
3. Remove the cable anti-slipping device plate
(b).
Mount the cam to the frame tighten the
fixing nut using a torque wrench set for
44 Nm.
To reassemble the cam, follow the disassembly
instructions in reverse order.
