KINESIS ONE: Service & Maintenance Manual rev. 2.1
Page 6.20

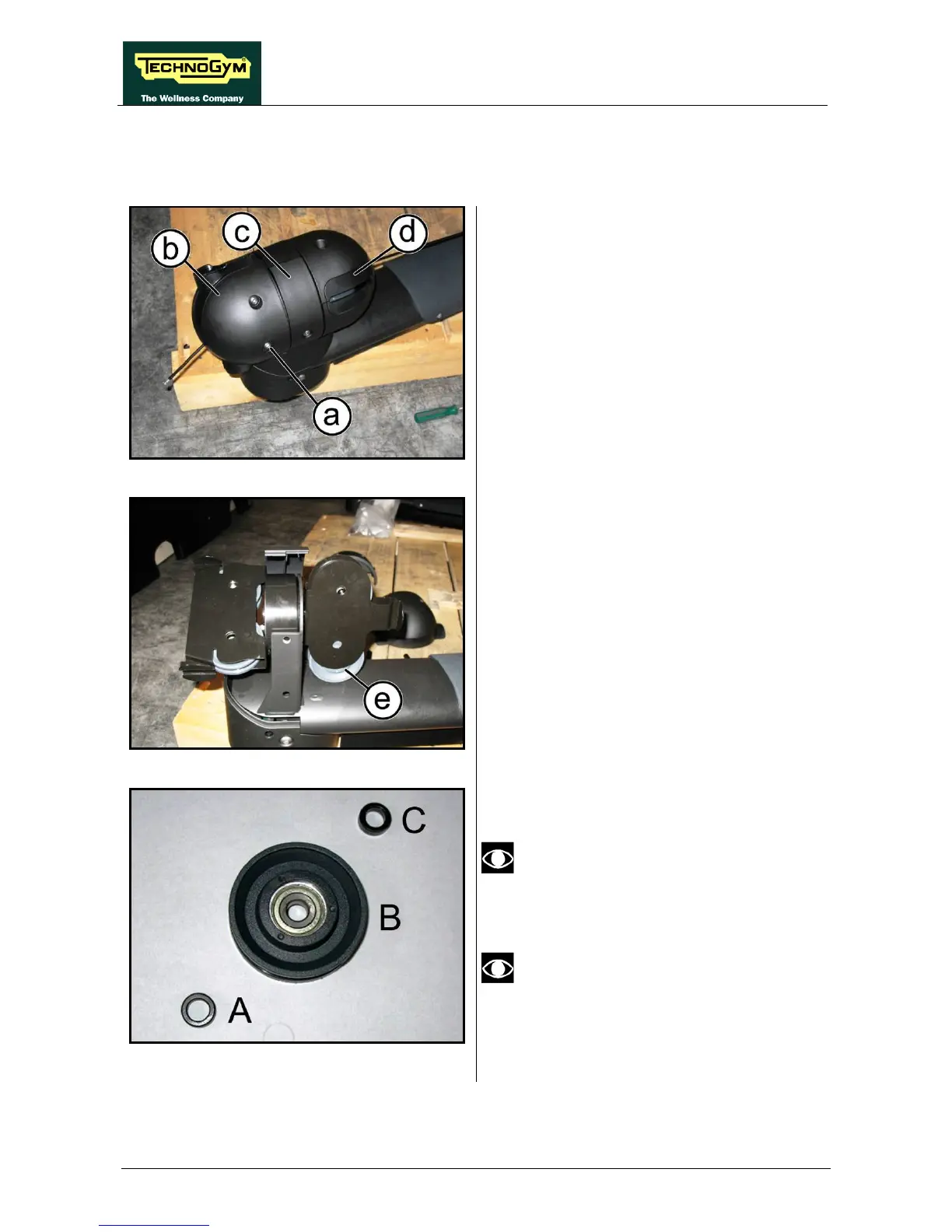

6.8. ROTATING PULLEY SYSTEM DISASSEMBLY
Figure 6.8-1
1. Pull the cable out as described in paragraphs:
6.4. “Removing Weight stack cable
(handles)”.
2. Back off the screws (a) using a 5mm
hexagonal wrench, on the both sides.
3. Remove the three protection guards (b), (c)
and (d).
Figure 6.8-2
4. Pull the 4 pins out and remove the pulleys
(e), paying attention to the pulley spacers.
Figure 6.8-3
During the reassembly place again two
spacers for each pulley, following the
sequence to side.
Mount the pulleys on the frame, using a
torque wrench set for 44 Nm to lock
down the fixing nut.
Continued on following page
→
