KINESIS ONE: Service & Maintenance Manual rev. 2.1
Page 7.5
7.4. THE MACHINE IS NOT FLAT
This problem may be due to the positioning of the machine on a not flat surface. To resolve this
problem is necessary to act on foot adjustment.

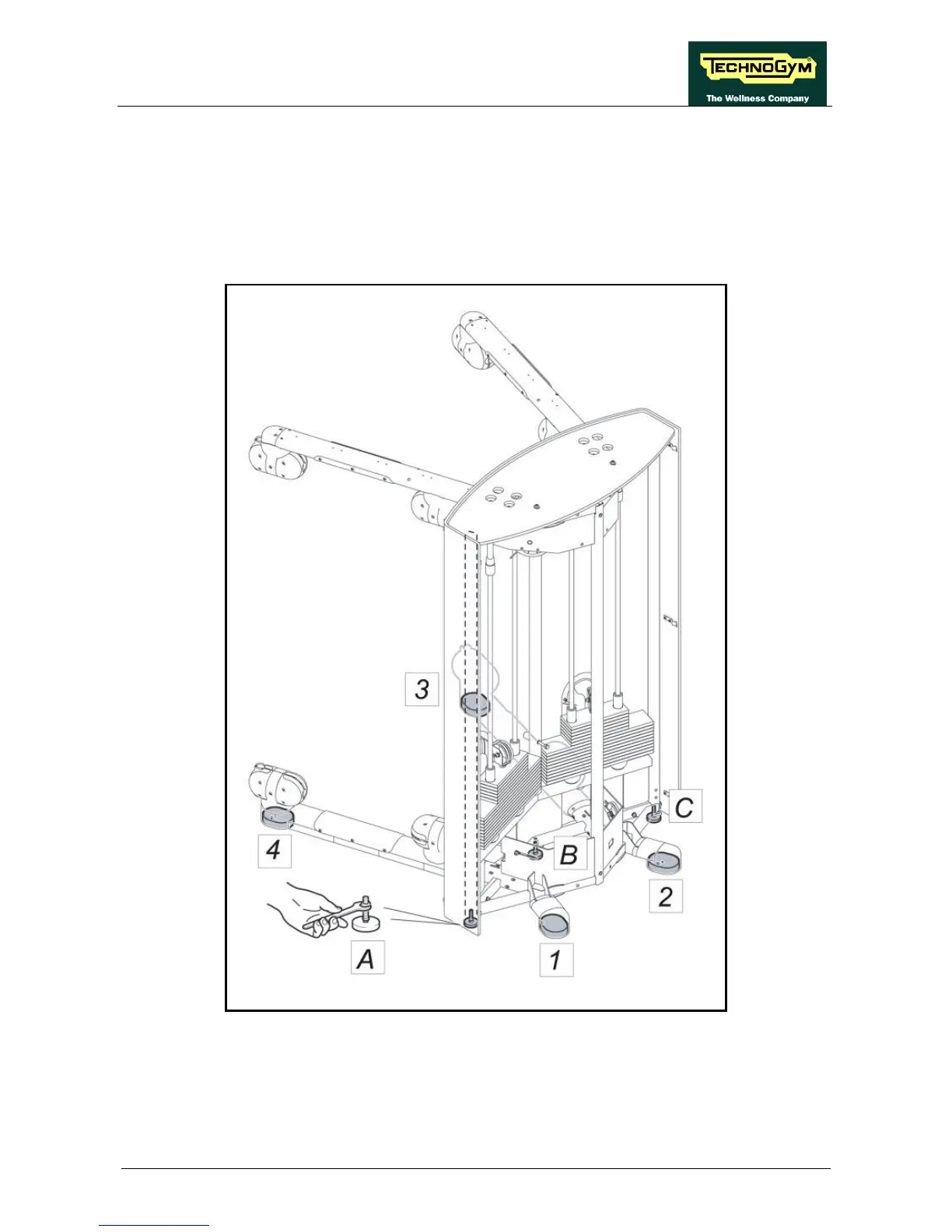

Figure 7.4-1
1. It is possible to adjust the feet height of the machine: n° 1-2 on the lower rear arm and n° 3-4 on
the lower front arms, as detailed here following. A-B-C of the frame, acting with a 19mm
wrench.
