6.5.2. UPPER ARMS

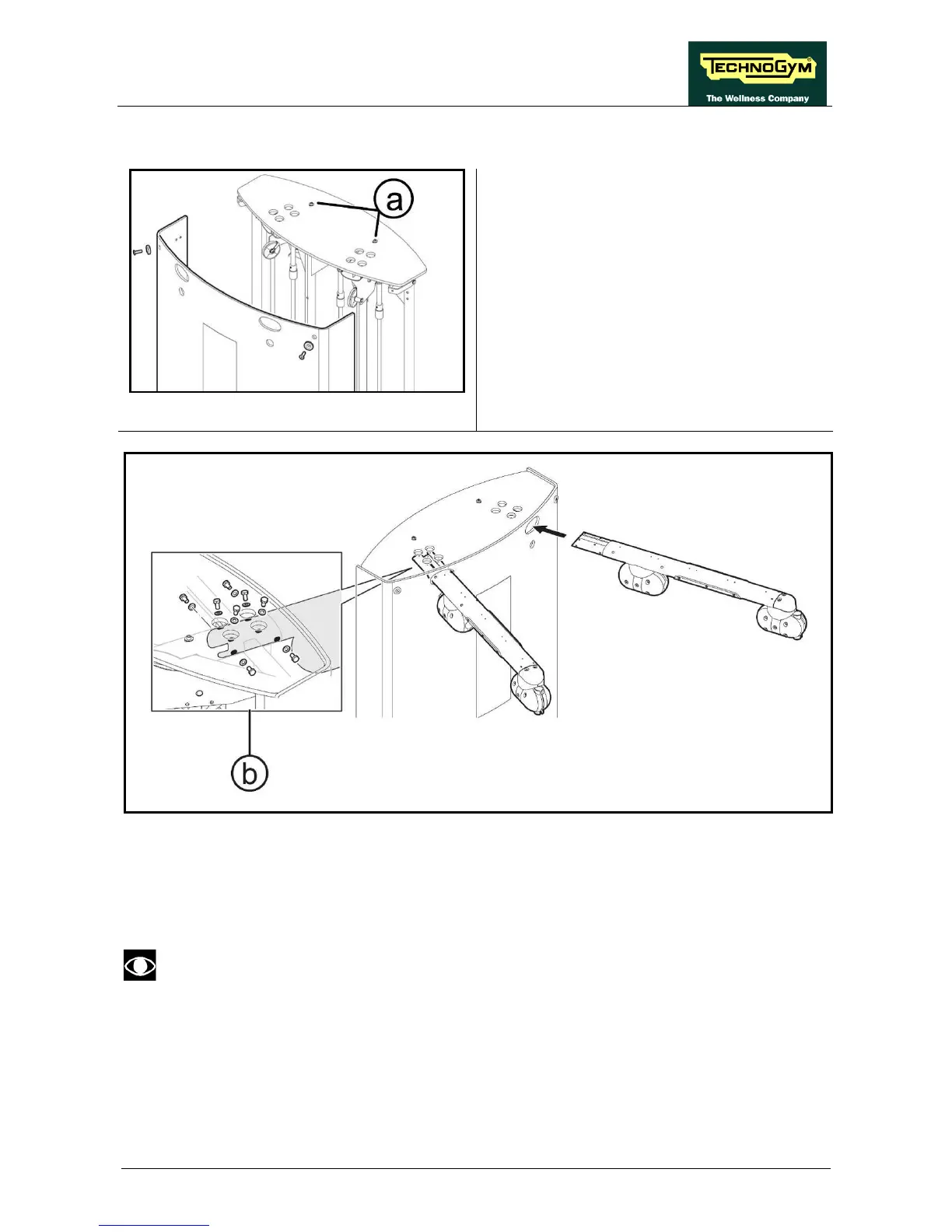

Figure 6.5-2
Carry out the operations described in
paragraphs: 6.1. “Rear panel disassembly”.
1. Back off the 2 screws (a) using a 5mm
hexagonal wrench.
2. Remove the top panel.
Figure 6.5-3
3. Back off the 8 screws (b), with a 17mm wrench.
4. Remove the upper arms from the front side.
At the reassembly, lock down the screws (a) using a torque wrench set for 44 Nm.
To reassemble the upper arms,
follow the disassembly instructions in reverse order.
