6.4. REMOVING WEIGHT STACK CABLE (HANDLES)
6.4.1. WEIGHT STACK CABLE AND HANDLES DISASSEMBLY

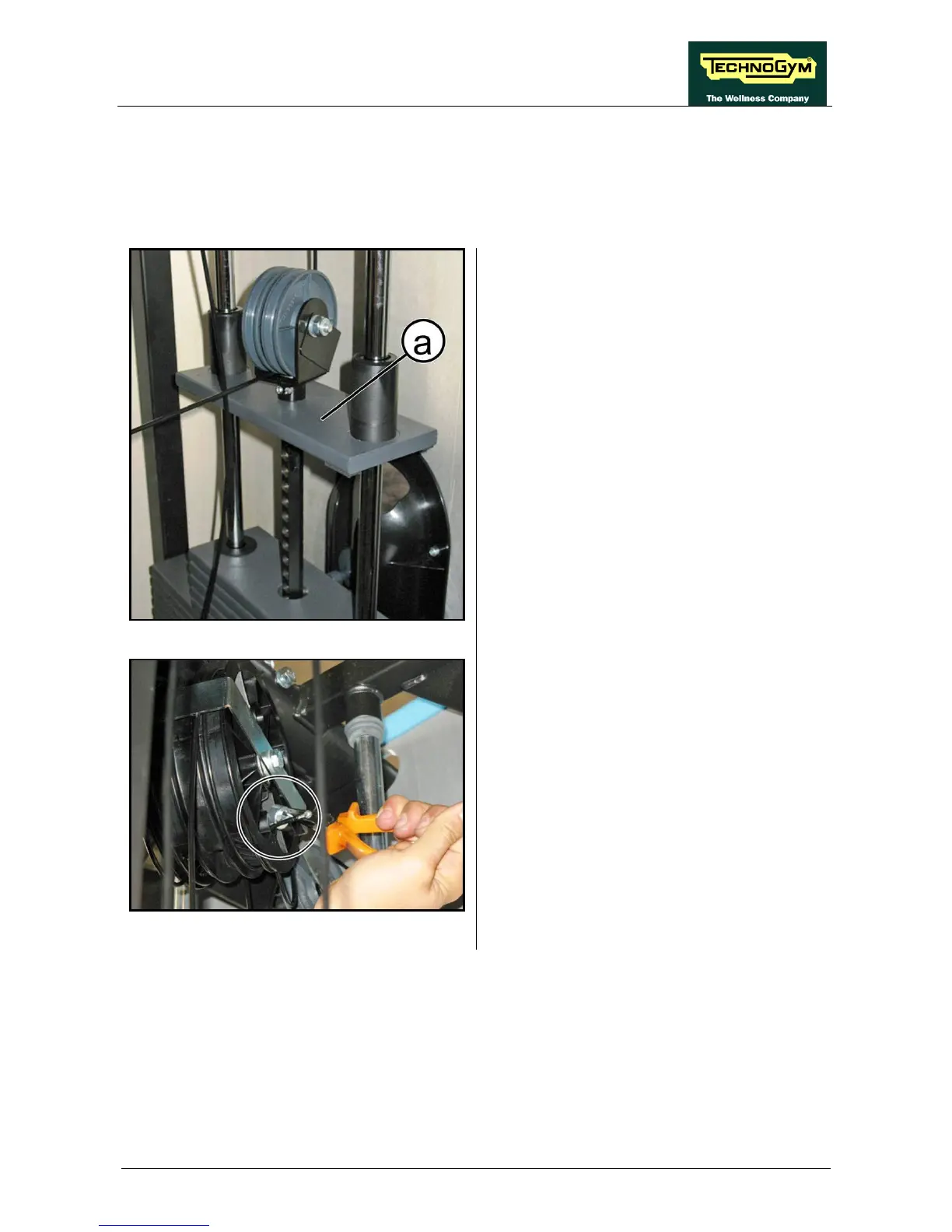

Figure 6.4-1
Carry out the operations described in
paragraphs: “Rear panel disassembly”.
1. Lift up the first plate (a) of the weight stack
to loosen the tension of the cable, as shown
in figure.
Figure 6.4-2
2. Extract the cable retainer from the cam, using
a pair of pliers and release the cable from it
3. Now it is possible to pull completely off the
cable and the handles.
To reassemble the weight stack cable, follow the
instructions in the following paragraph.
