6.2. FORNT PANEL DISASSEMBLY

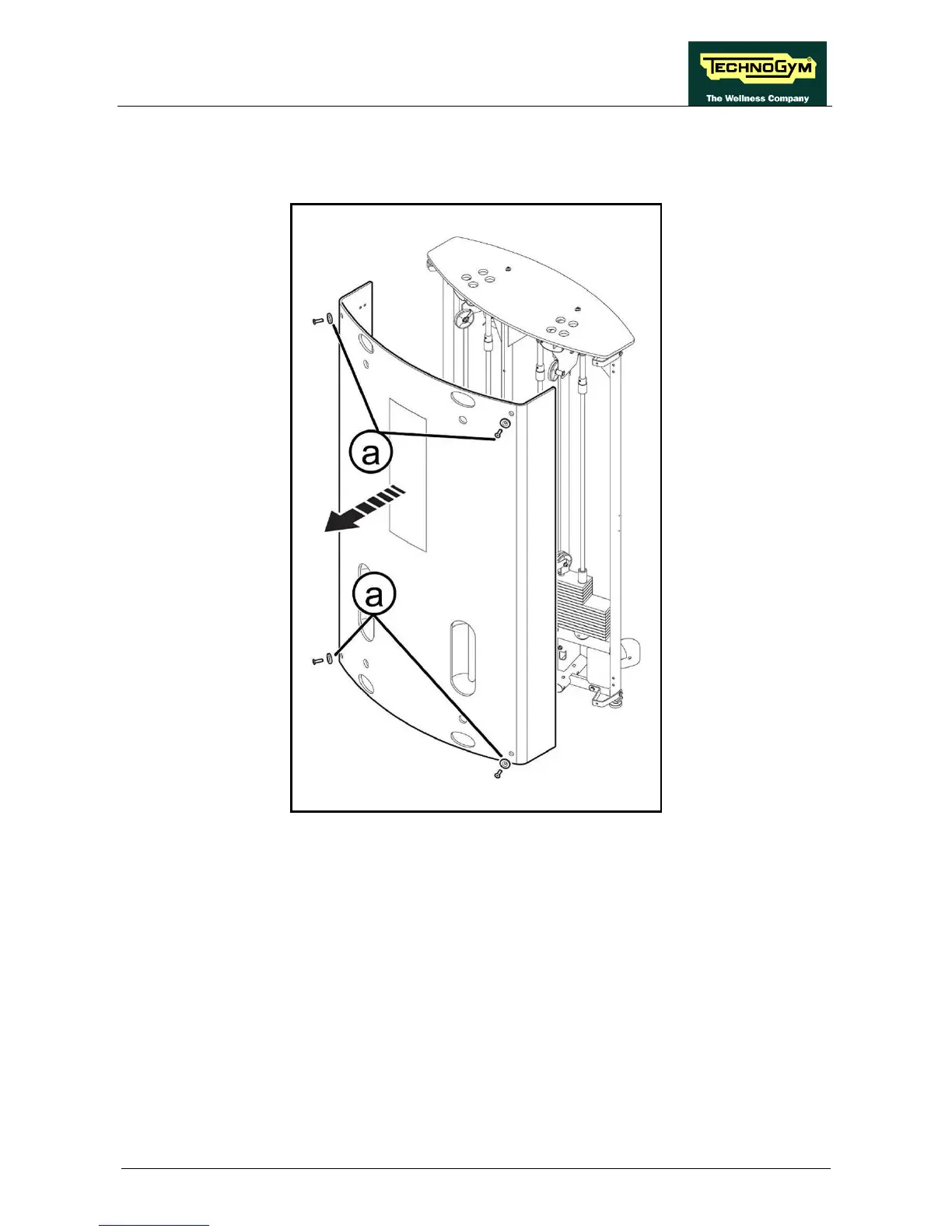

Figure 6.2-1
1. Back off the 4 screws and their washers (a). Remove first of all the lower screws and then the
higher ones, using a 6mm hexagonal wrench.
2. Remove the panel supported by two large slots in the selection of the weight stack
To reassemble the front panel,
follow the disassembly instructions in reverse order.
