Technogym KINESIS ONE - Adjustment Weight Stack Stop

KINESIS ONE: Service & Maintenance Manual rev. 2.1
Page 7.6

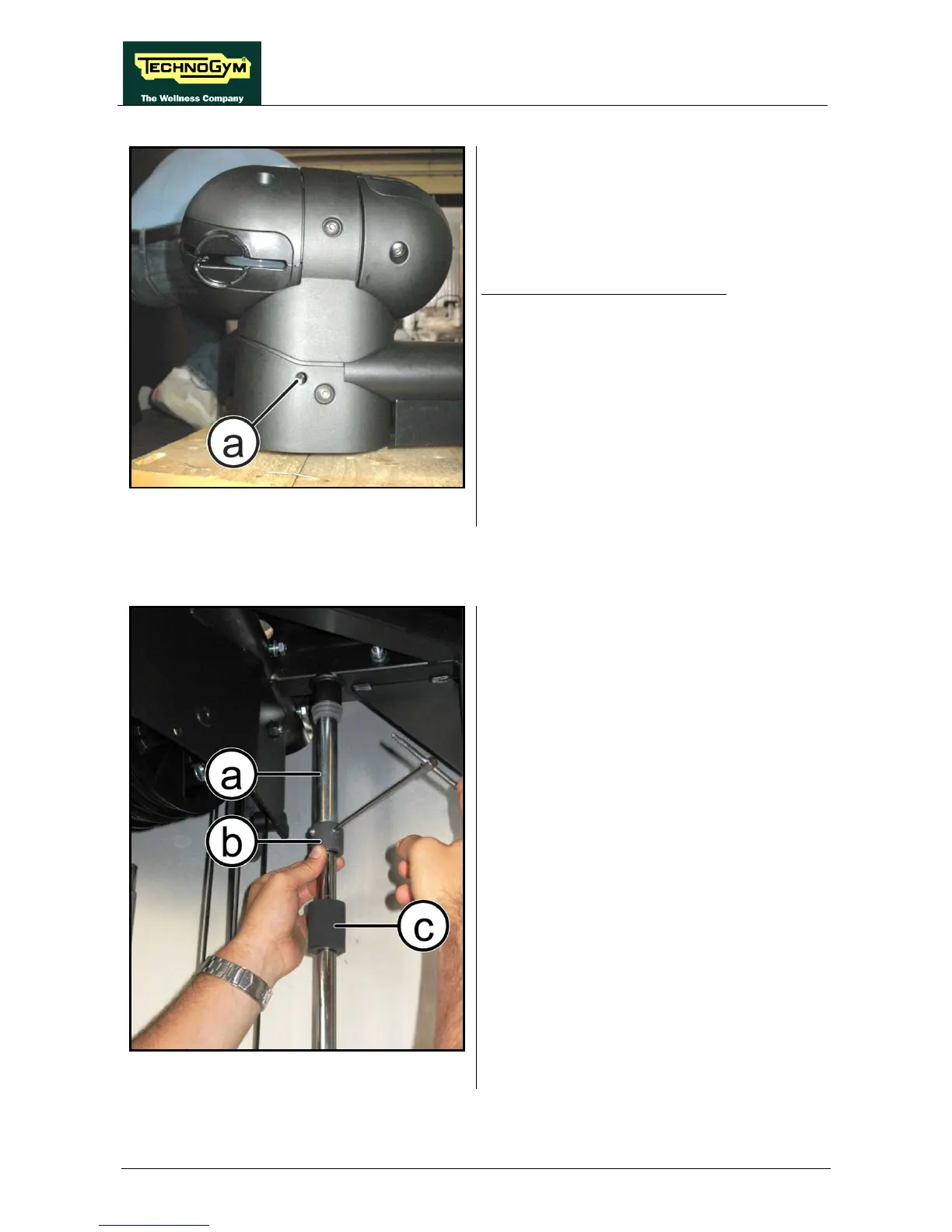

Figure 7.4-2
For the adjusting feet on the arms:
2. Screw or back off the grub screw (a), using a
4mm hexagonal wrench, until the foot lay
correctly down on the ground.
7.5. ADJUSTMENT WEIGHT STACK STOP
Figure 7.5-1
Carry out the operations described in
paragraphs: 6.1. “Rear panel disassembly”.
1. Pick the spacer (a) up to the frame, the stop
(b) to the spacer and to lock the grub screws
of the stop using a 4mm hexagonal wrench.
2. Then pick the sponge (c) up to the stop.
