6.6. PULLEY DISASSEMBLY

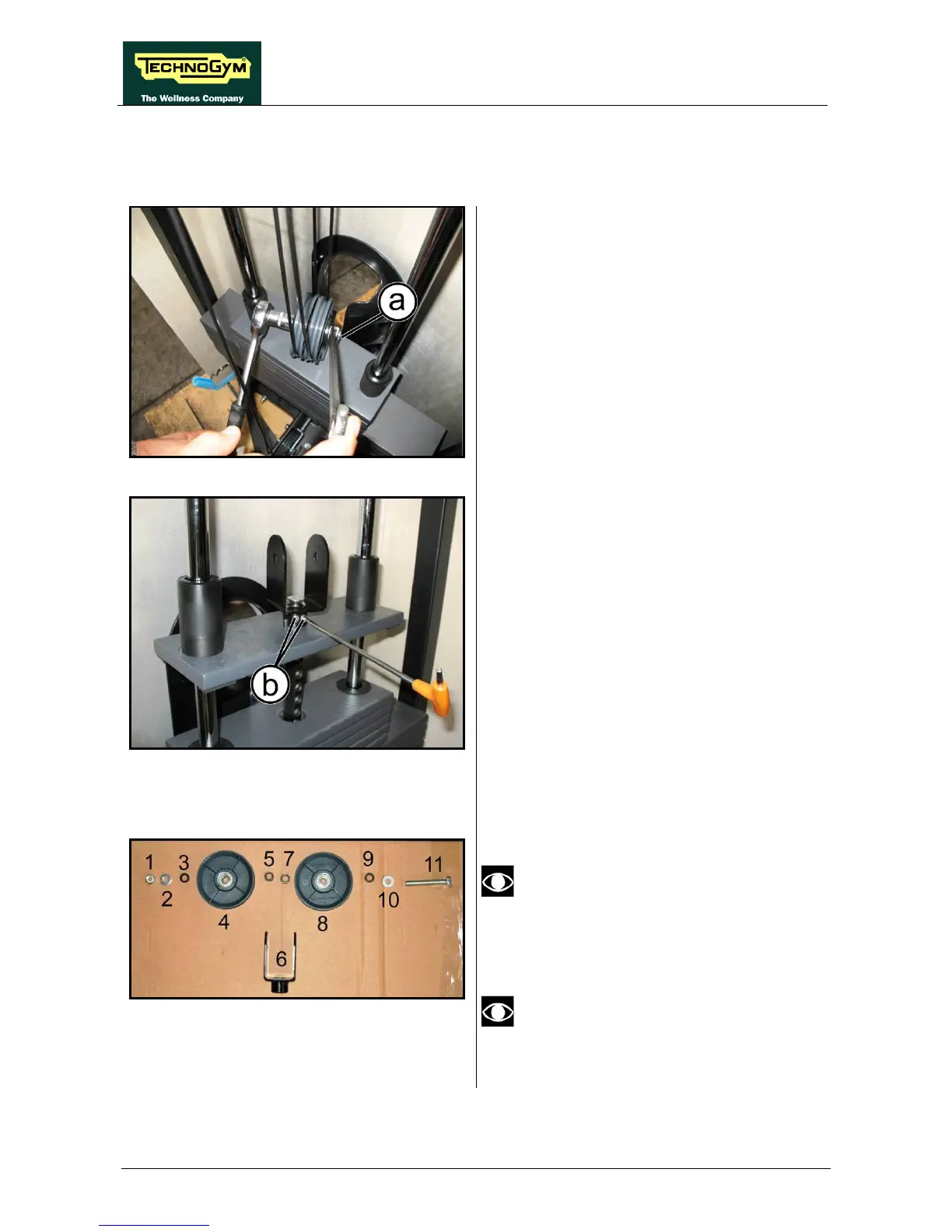

Figure 6.6-1
Carry out the operations described in
paragraphs: 6.1. “Rear panel disassembly”.
1. Back off the central screw (a) using a 17mm
wrench, locking the nut on the opposite side
with another 17mm wrench, as shown in the
figure at the side.
Figure 6.6-2
2. Remove the pulleys mounted on the cross.
3. Back off the two grub screws (b) using a
4mm hexagonal wrench.
4. Remove the pulleys support.
Figure 6.6-3
To reassemble the cross, follow the disassembly
instructions in reverse order.
At the reassembly be careful to insert
again all the washers and the spacers;
according to the sequence in the figure
to side.
Mount the pulleys on the frame, using a
torque wrench set for 44 Nm to lock
down the fixing nut.
