Technogym KINESIS ONE - Rear Cable Disassembly

KINESIS ONE: Service & Maintenance Manual rev. 2.1
Page 6.4
6.3. REAR CABLE DISASSEMBLY
6.3.1. REAR CABLE DISASSEMBLY

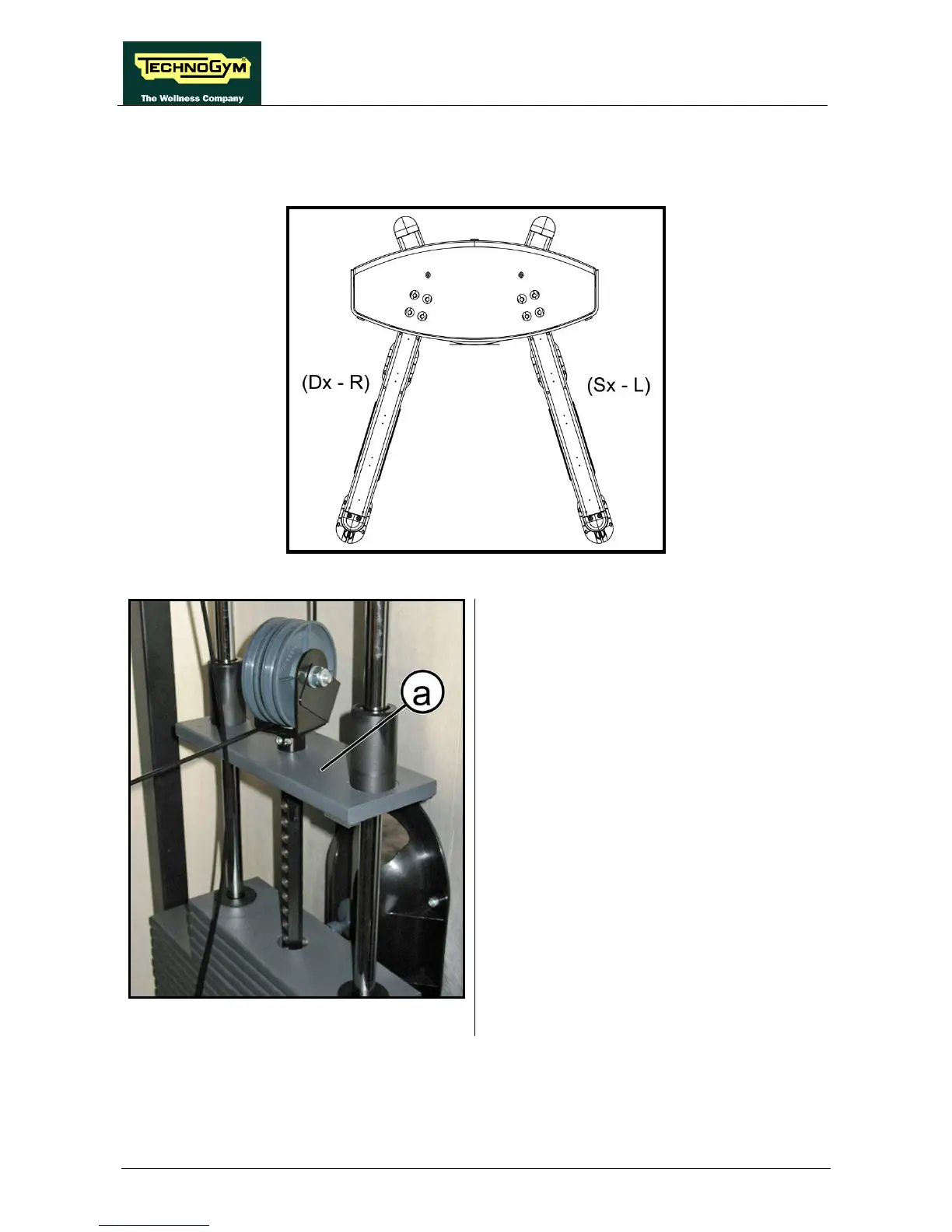

Figure 6.3-1
Carry out the operations described in
paragraphs: 6.1. “Rear panel disassembly”.
1. Lift up the first plate (a) of the weight stack
to loosen the tension of the cable, as shown
in figure.
Continued on following page →
