Technogym KINESIS ONE - Arms Disassembly

KINESIS ONE: Service & Maintenance Manual rev. 2.1
Page 6.16
6.5. ARMS DISASSEMBLY
6.5.1. LOWER ARMS

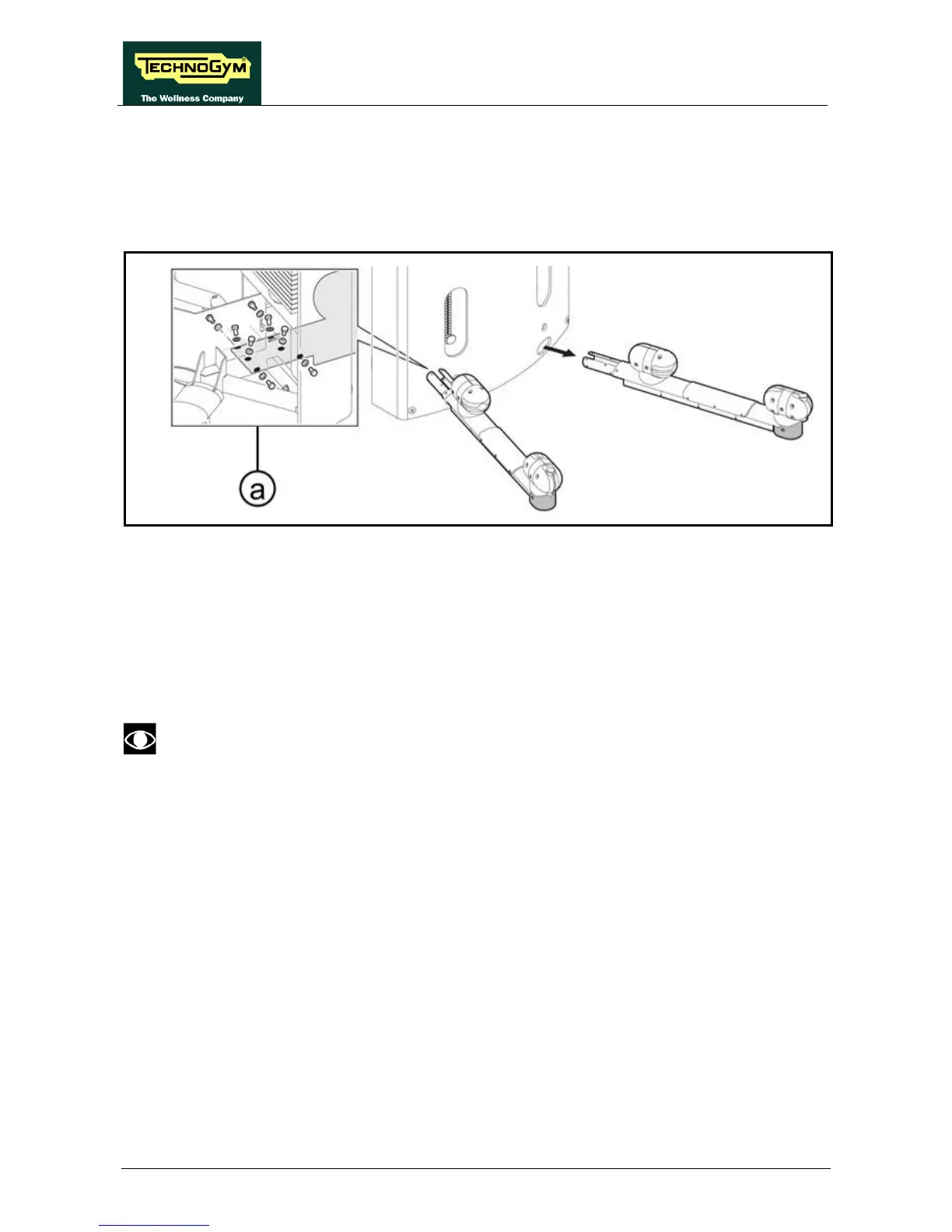

Figure 6.5-1
Carry out the operations described in paragraphs: 6.1. “Rear panel disassembly”.
1. Back off the 8 screws (a), using a 17mm wrench.
2. Remove the arms from the front side.
At the reassembly, lock down the screws (a) using a torque wrench set for 44 Nm.
To reassemble the lower arms,
follow the disassembly instructions in reverse order.
