6.10. FOOT ADJUSTMENT DISASSEMBLY

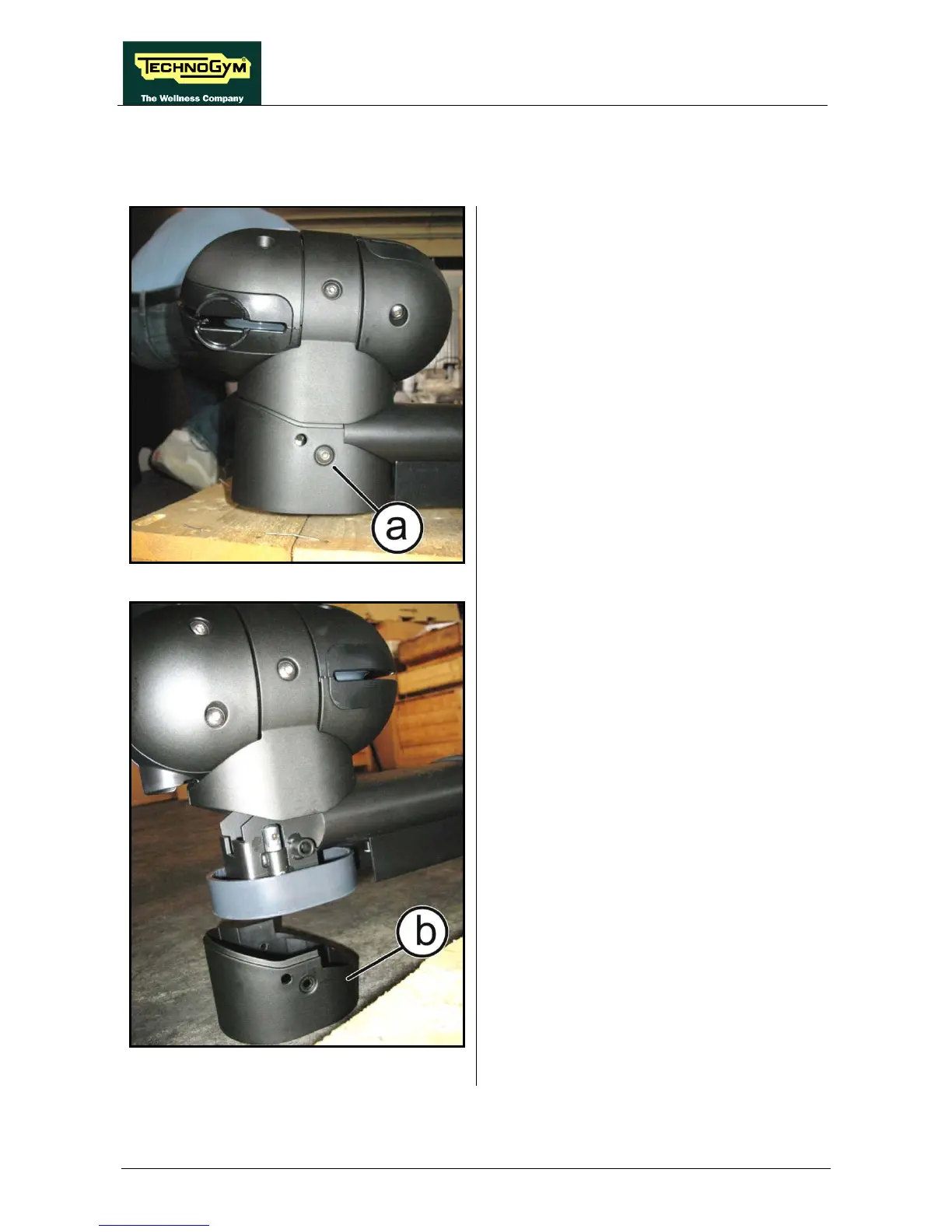

Figure 6.10-1
1. Back off the screw (a) using a 4mm
hexagonal wrench, on both sides of the foot.
Figure 6.10-2
2. Remove the covering guard (b), from the
bottom.
Continued on following page →
