KINESIS ONE: Service & Maintenance Manual rev. 2.1
Page 6.25

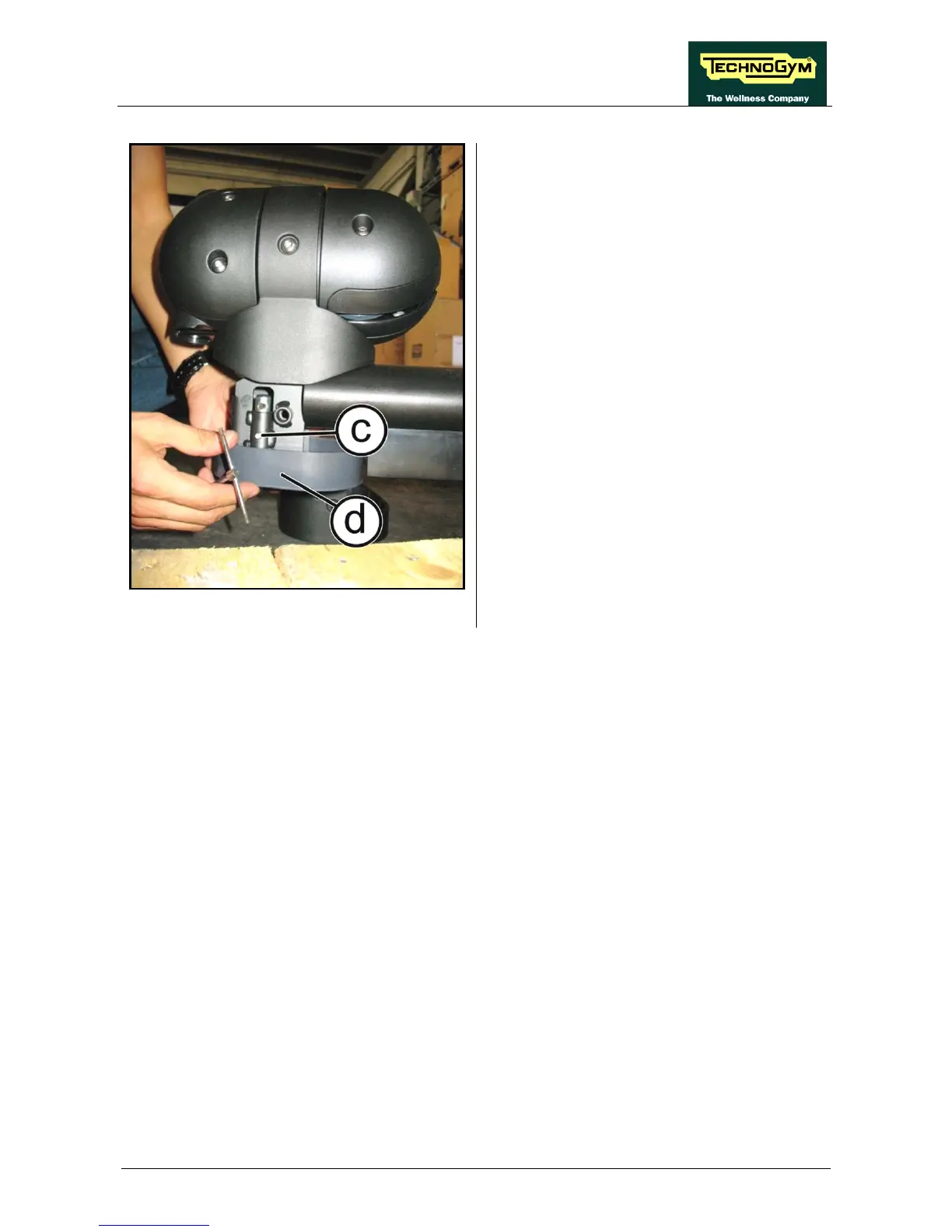

Figure 6.10-3
3. Back off the grub screw (c) using a 3mm
hexagonal wrench.
4. Remove the foot (d).
