6.9. WEIGHT STACK DISASSEMBLY

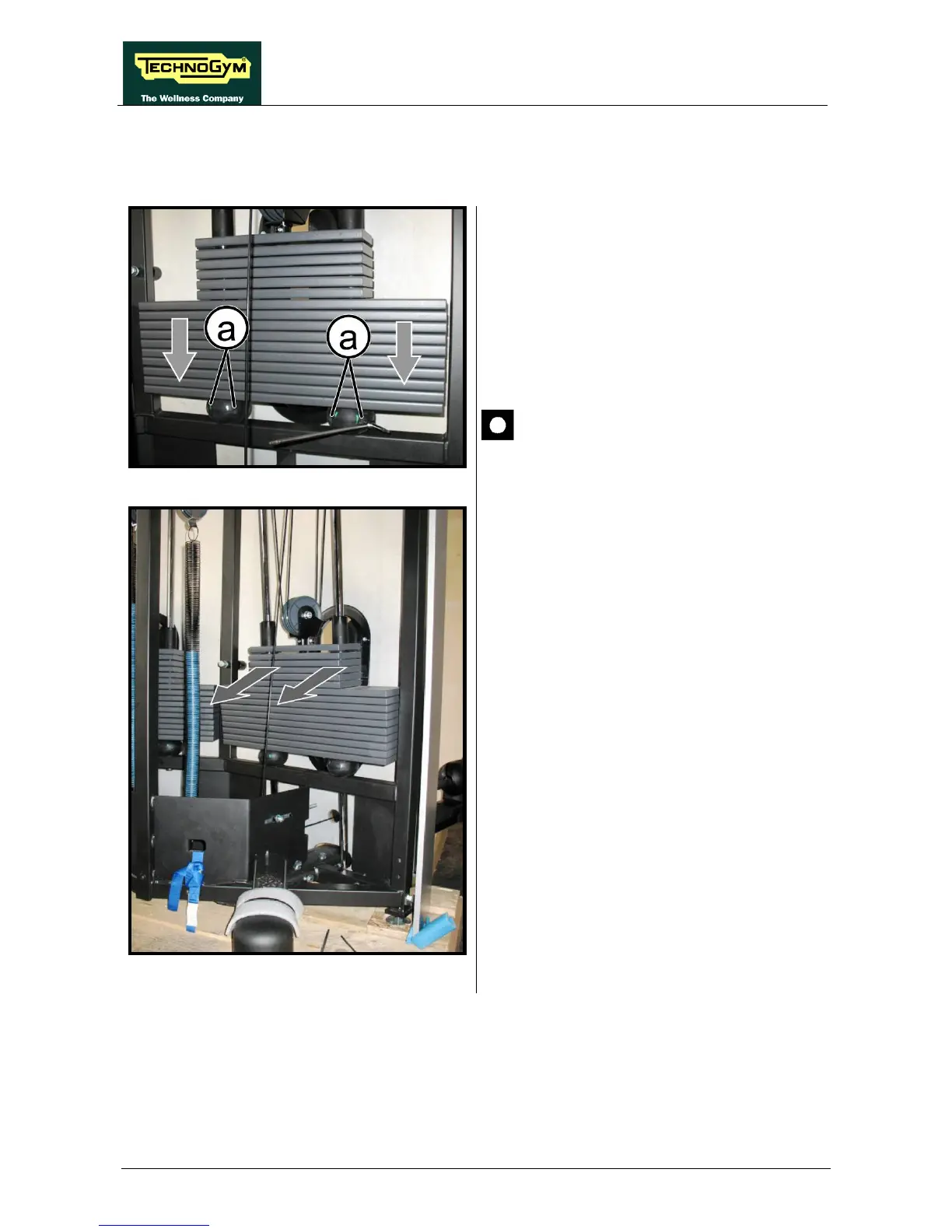

Figure 6.9-1
Carry out the operations described in
paragraphs: 6.1. “Rear panel disassembly”.
1. Loosen the 2 grub screws (a), on the weight
stack stops, using a 4mm hexagonal wrench,
for each bar.
CAUTION: the bars fall down.
Figure 6.9-2
2. Lay down the bars on the ground and slightly
tilt the weight stack toward yourself, as
indicated by arrows.
Continued on following page
→
