KINESIS ONE: Service & Maintenance Manual rev. 2.1
Page 6.15

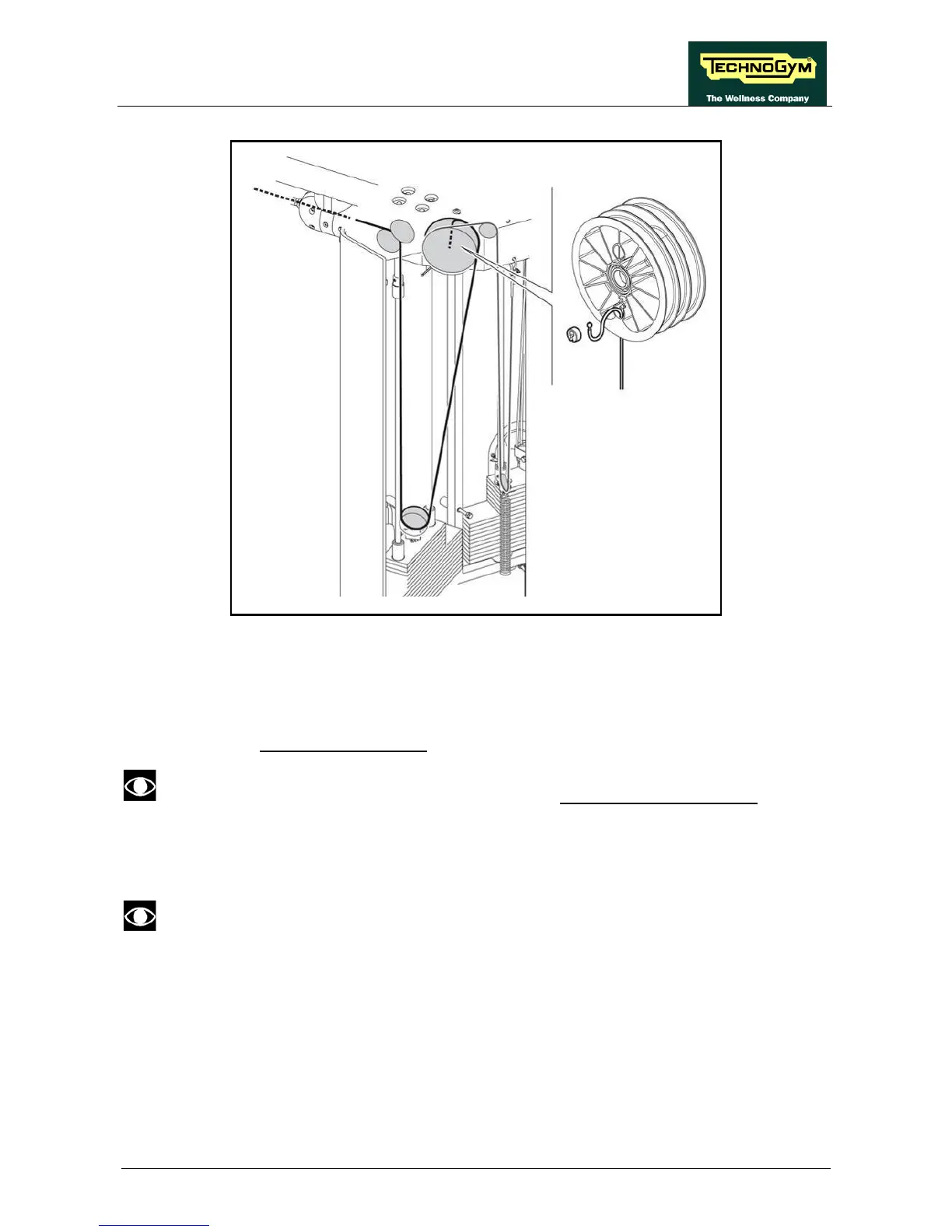

Figure 6.4-17
17. Remove the Allen T wrench used at the point (3) of Figure 6.4-5.
18. Rotate the cam 6 times CLOCKWISE
and lock again the cam.
If working on the RIGHT side rotate the cam 6 time COUNTERCLOCKWISE.
19. Rise again upward, to the cam and pass the cable into the less deep hole on its external side.
20. Fix the crimped end of the cable into the cable retainer and properly house it in the cam.
Mount the pulleys on the frame, using a torque wrench set for 44 Nm to lock down the
fixing nut.
