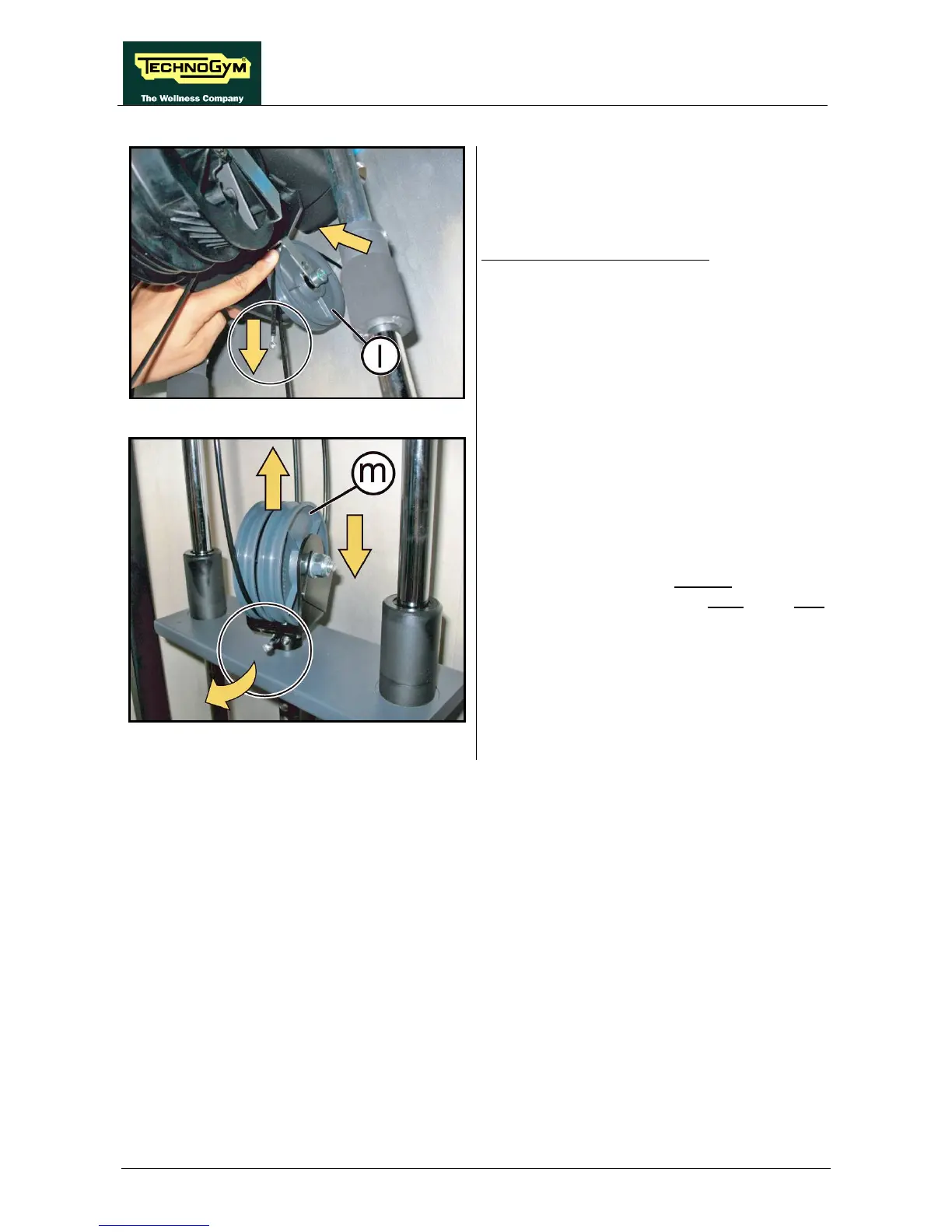

Figure 6.4-15
On the rear side of the machine:
15. Pass the cable on the upper pulley (l) shown
in figure and get back the pulley on the cross.
Figure 6.4-16
16. Route the cable on the internal pulley of the
cross (m), passing from the front to the rear,
side, as shown in figure
Continued on following page
→
