KINESIS ONE: Service & Maintenance Manual rev. 2.1
Page 6.13

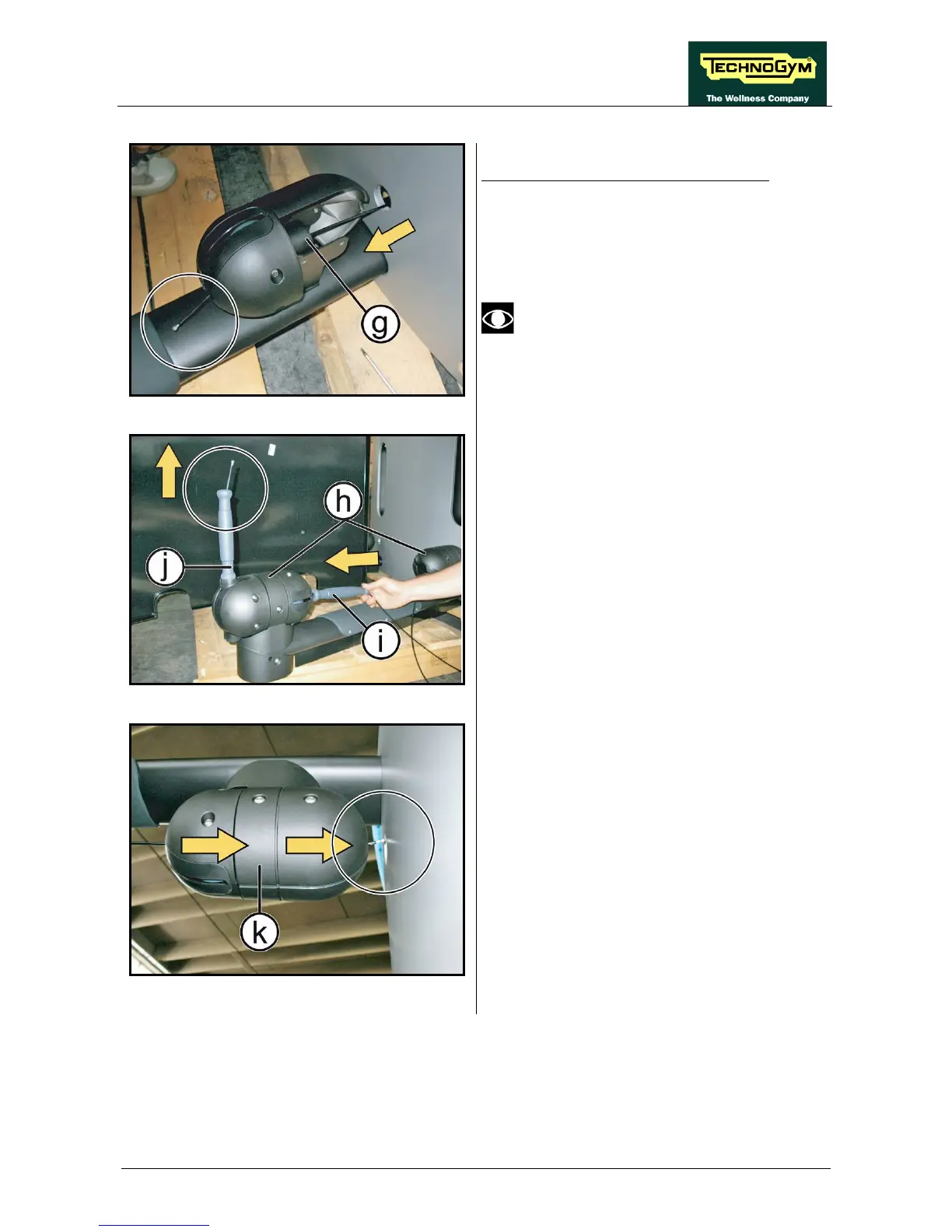

Figure 6.4-12
Go now on the front side of the machine:
10. Pass the cable through the rotating pulley
system and its central bearing (g).Pull it out
from the other side, as shown in figure.
If necessary, disassemble the guards of
the rotating pulley system, following the
procedure at paragraph: 6.8. “Rotating
pulley system disassembly”.
Figure 6.4-13
11. Pass the cable through the two lower rotating
pulley systems (h), keeping one handle (i)
between them. Insert the handle so that the
Technogym® logo, is readable by the user in
operating position.
12. Pass the cable through the lower and the
upper arms and insert a second handle (j)
between them.
Figure 6.4-14
13. Pass the cable through the two upper rotating
pulley systems (k), and insert a third handle
between them.
14. Pass the cable though the upper hole of the
front panel, as shown in figure.
Continued on following page
→
