3.5. INSTALLING THE MACHINE TO BE ASSEMBLED
3.5.1. MA50 – LEG PRESS

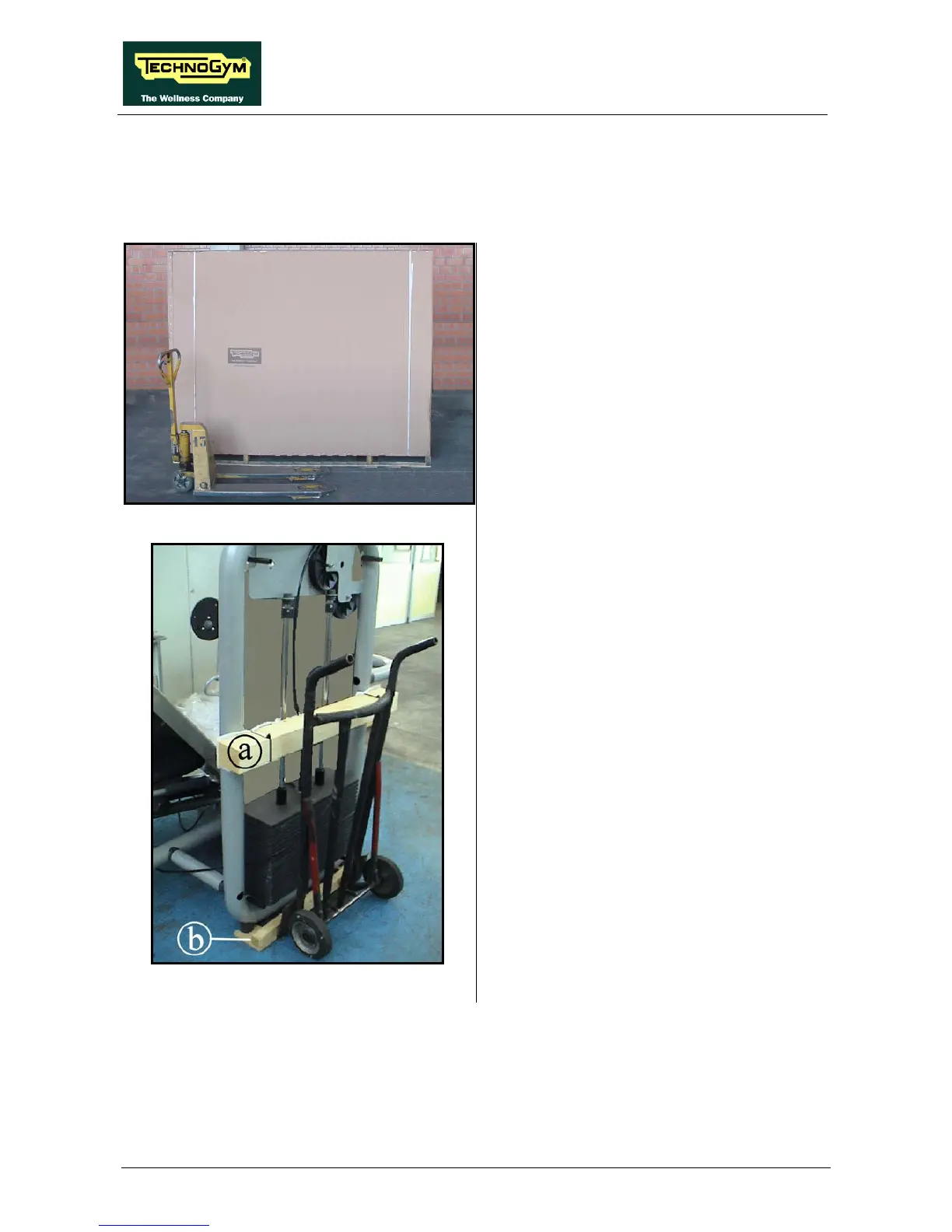

Figure 3.5-1
1. The Leg Press is delivered on a wooden
pallet, wrapped in nylon bag and packed in a
carton.
2. To move the machine, it is necessary to use a
pallet truck or fork lift truck
Figure 3.5-2
3. Remove the carton and the nylon bag.
4. The machine is delivered with the rear guard
disassembled, and is fitted with the wooden
spacer (a) to protect it during handling with a
trolley as shown in the figure.
5. The support (b) at the base of the weight
stack prevents the base of the truck from
damaging the frame.
6. Remove the spacer (a) and mount the rear
casing on the machine.
