ELEMENT LINE: Service & Maintenance Manual - rev. 1.2
Page 5.17
5.11. DISASSEMBLING EASY START SYSTEM ON PECTORAL

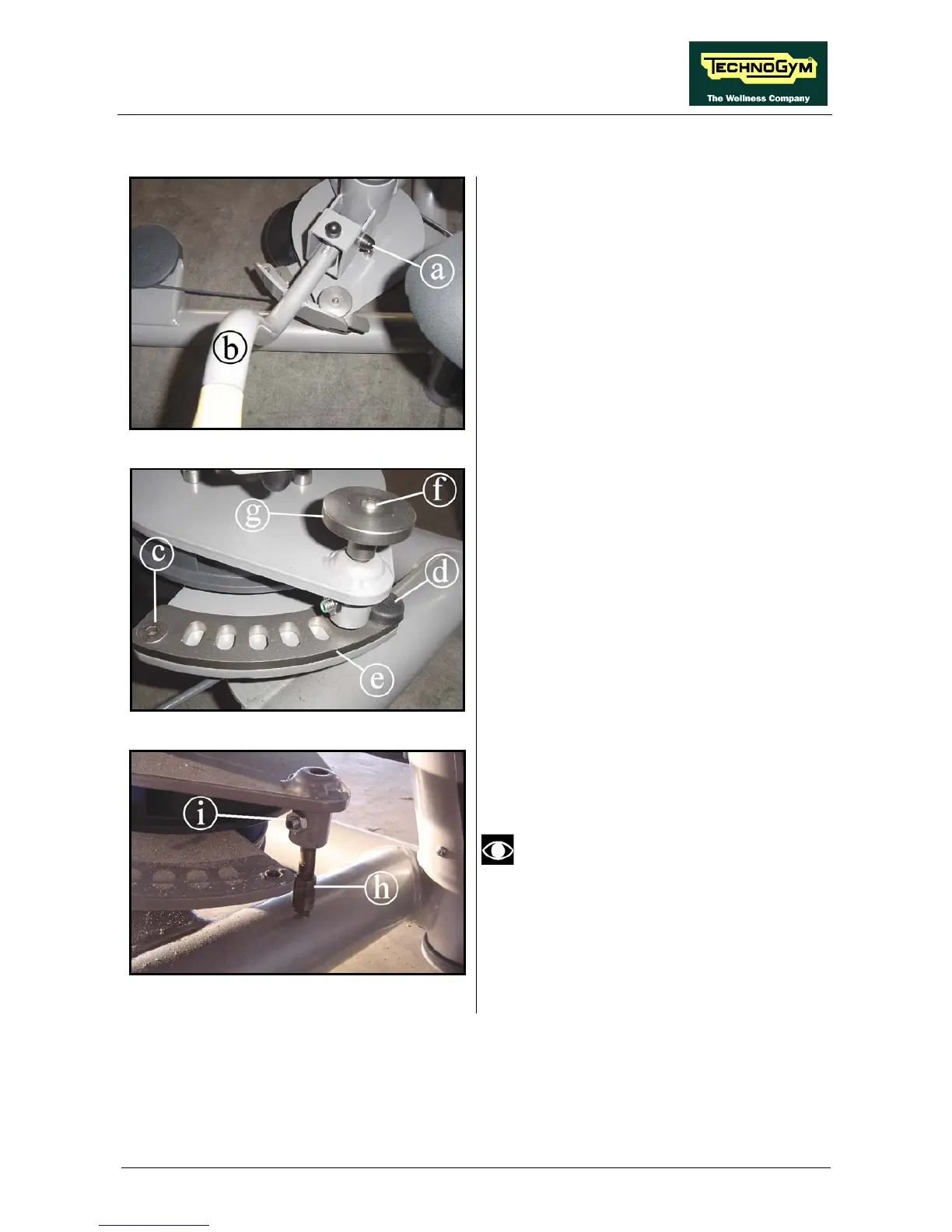

Figure 5.11-1
1. Remove the cap (a).
2. Back off the screw under the cap, using a 6-
mm hex wrench locking down the nut on the
opposite side with a 17-mm wrench.
3. Remove the lever (b).
Figure 5.11-2
4. Back off the screw (c) using a 8-mm hex
wrench.
5. Back off the rubber stop (d).
6. Remove the selecting plate (e).
7. Back off the screw (f) using a 3-mm hex
wrench.
8. Remove the piece (g).
Figure 5.11-3
9. Remove the selector plate (c).
During reassembly, take care to insert
the pin (h) so that the flattened part is
toward the grub screw (i).
To reassemble the easy start system, carry out
the above steps in reverse order.
