6.4. THE LEVERS OF DUAL-AXIS MACHINES ARE NOT
ALIGNED
This operation applies to Abductor, Adductor, Arm Curl, Arm Extension, Chest Press,
Low Row, Pectoral, Shoulder Press and Vertical Traction.
To align the levers of dual-axis machines, you may adjust the position of the stop buffers against
which the machine levers rest, as illustrated below:

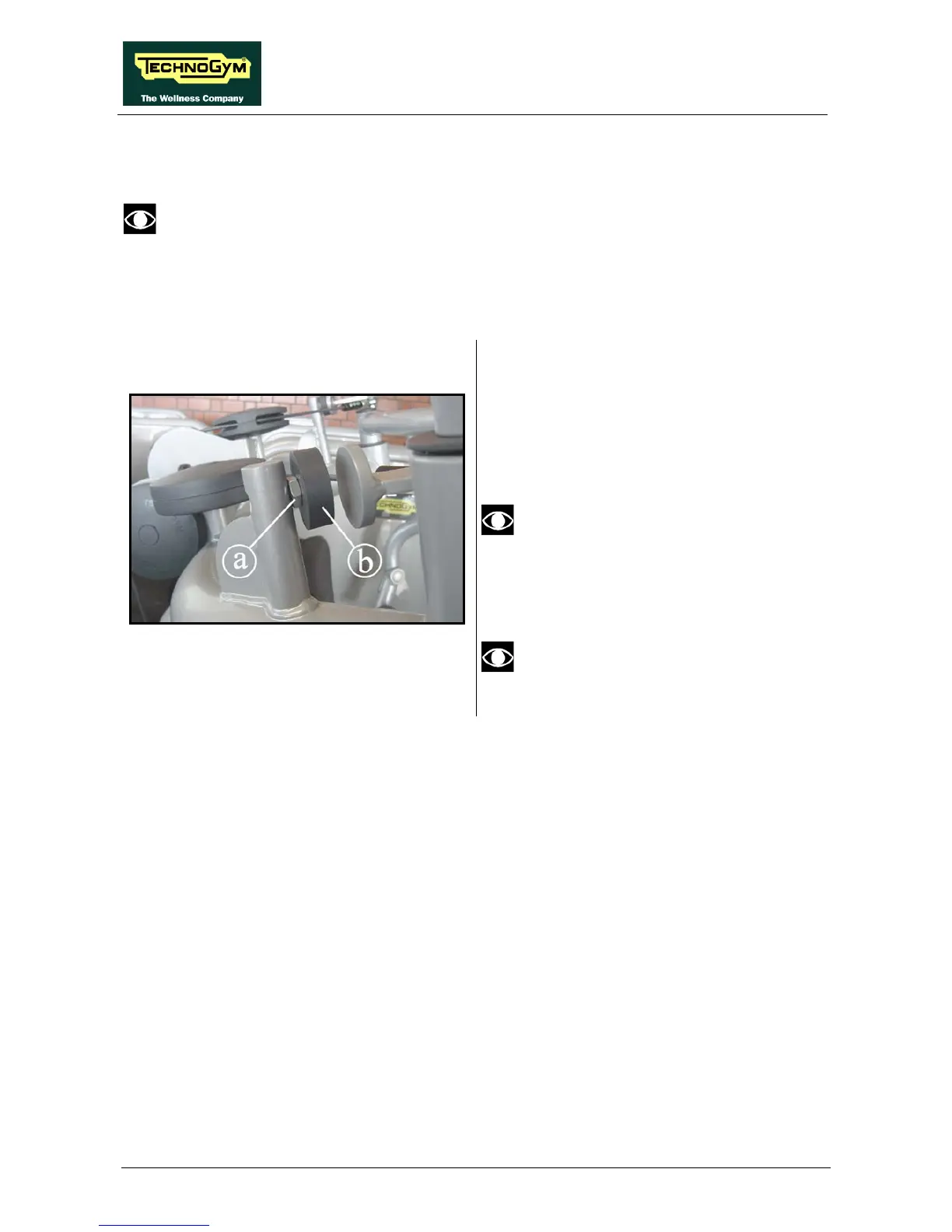

Figure 6.4-1
1. Loosen the counter-nut (a) on both sides,
using a 17-gauge wrench.
2. Adjust the position of the 2 stop buffers (b),
tightening or loosening them until the levers
are aligned.
Use a lever for a more precise check.
3. When the adjustment is complete, tighten the
counter-nuts (a) once again.
This procedure may also be carried out
to adjust the starting position of the
levers on the other machines.
