ELEMENT LINE: Service & Maintenance Manual - rev. 1.2
Page 5.13
5.9. DISASSEMBLING ROLLERS ADJUSTING SYSTEM ON
LAT MACHINE

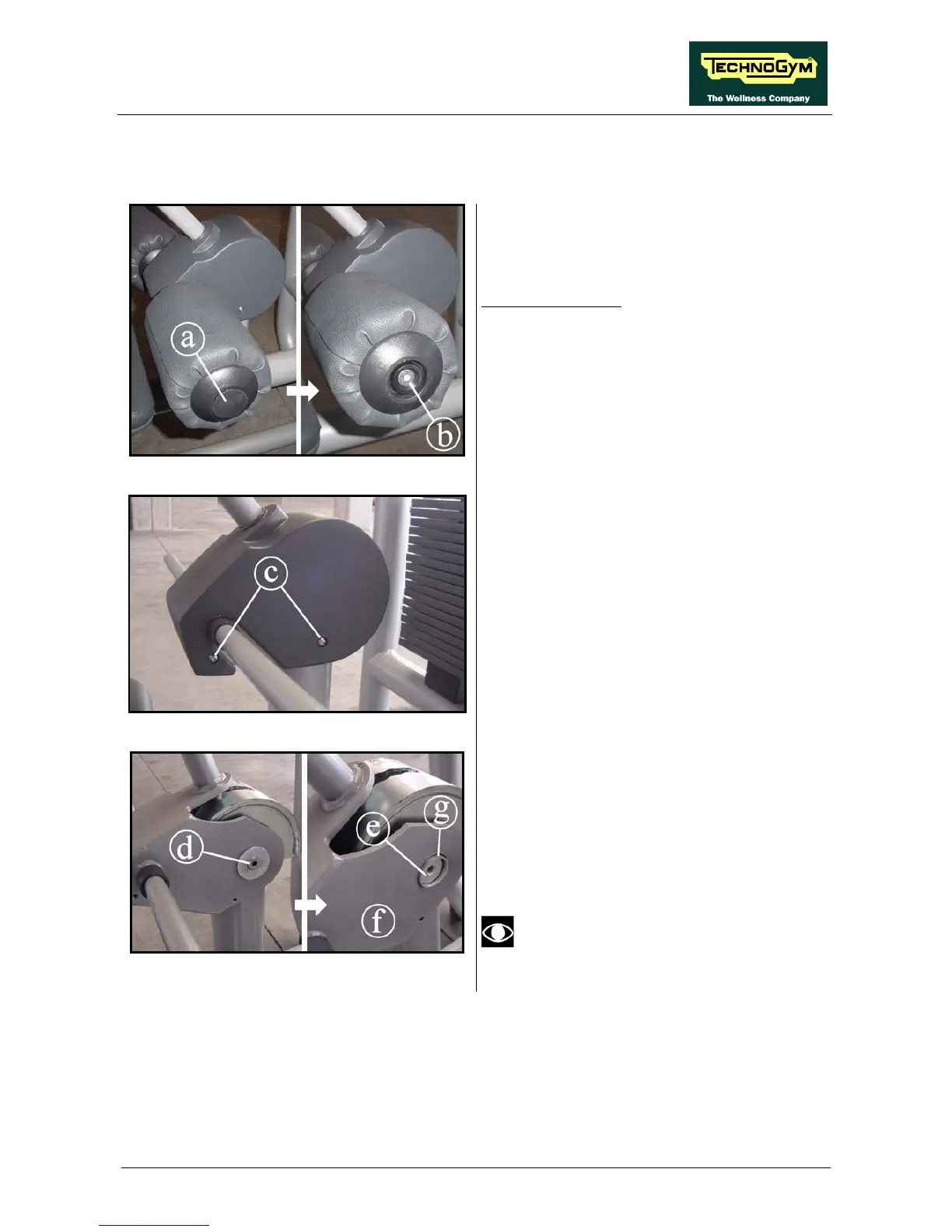

Figure 5.9-1
On both the rollers:
1. Remove the plastic cap (a).
2. Back off the screw (b) using a 5-mm hex
wrench and pull the roller out from the side.
Figure 5.9-2
3. Back off the screws using a 4-mm hex
wrench on both side and remove the plastic
guard.
Figure 5.9-3
4. Back off the screw (d) using a 5-mm hex
wrench, locking down the pin on the
opposite side using a 6-mm hex wrench.
5. Remove the pin e and the rollers support
frame (f).
Take care during reassembly procedure
to replace the spacer (g) as shown in the
figure to side.
Continued on next page
→
