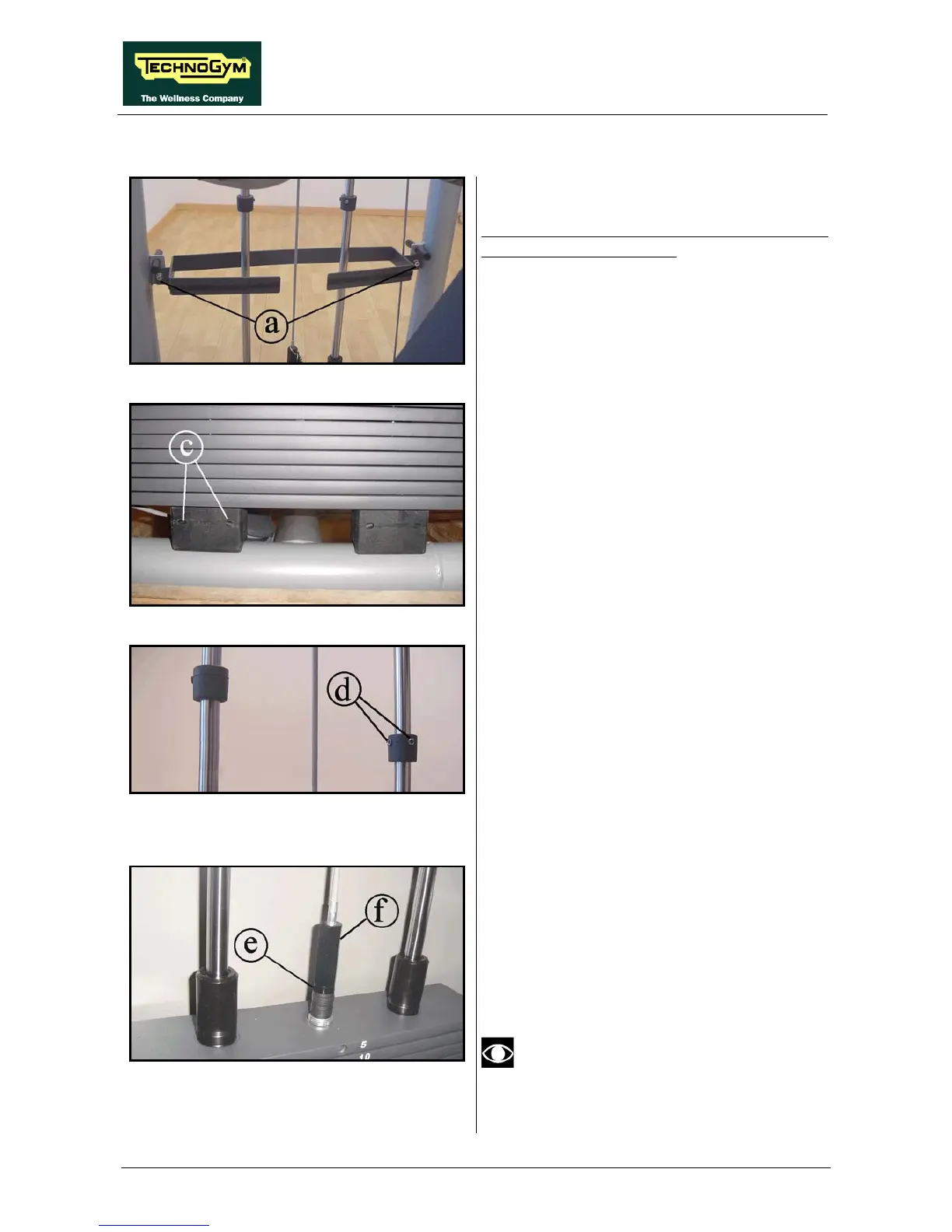

5.2. DISASSEMBLING THE WEIGHT STACK
Figure 5.2-1
Carry out the procedure described in paragraph
5.1. “Weight stack casing”.
1. Back off the screws (a), using a 5-mm hex
wrench.
2. Remove the weight stack casing support.
Figure 5.2-2
3. For both the weight stack rods, back off the
grub screws which secure the rods, reaching
them by the two holes (c) in the shock
absorbers. Use a 4-mm hex wrench.
The rod will move down by a few
centimetres.
Figure 5.2-3
4. Use a 4-mm hex wrench to back off the grub
screws (d) and remove the stop from both the
rods.
Figure 5.2-4
5. Back off the counter nut (e) and then the
threaded pin (f), using a 22-mm wrench.
6. Push the rods toward the back in order to
remove, from the top, all the plate of the
weight stack, additional weight assembly if
present.
To reassemble the weight stack, carry out the
above steps in reverse order.
After complete this procedure, adjust
the cable tension as detailed in
paragraph 6.2. “The weight stack cable
is not taut”.
