ELEMENT LINE: Service & Maintenance Manual - rev. 1.2
Page 5.10
5.7. DISASSEMBLING UNLOCKING LEVER ON ABDUCTOR -
ADDUCTOR

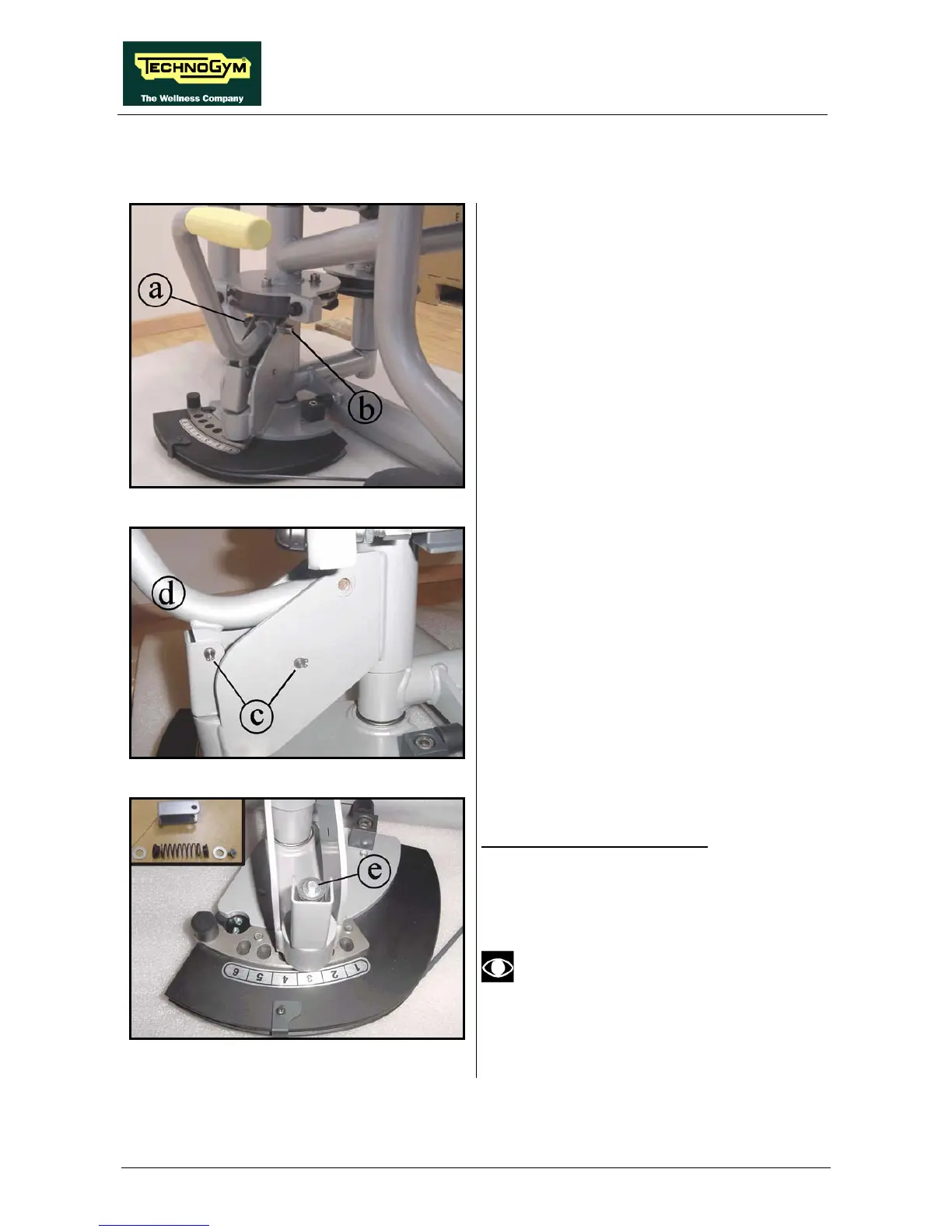

Figure 5.7-1
1. Remove the plastic cap (a).
2. Back off the screw (b) using an 8-mm hex
wrench, locking down the nut on the other
side with a 17-mm wrench.
Figure 5.7-2
3. Remove the two seeger (c) using the proper
pliers.
4. Remove the unlocking lever (d).
Figure 5.7-3
To disassemble the selector pin:
1. Back off the screws (e) using an 8-mm
wrench, locking down the pin with a pliers.
When reassemble the group, be careful
to insert all the bushings and the
washers in the same order, as shown in
the picture to side.
Continued on next page
→
