3.5.2. MA85 – ERCOLINA CROSSOVER CABLE

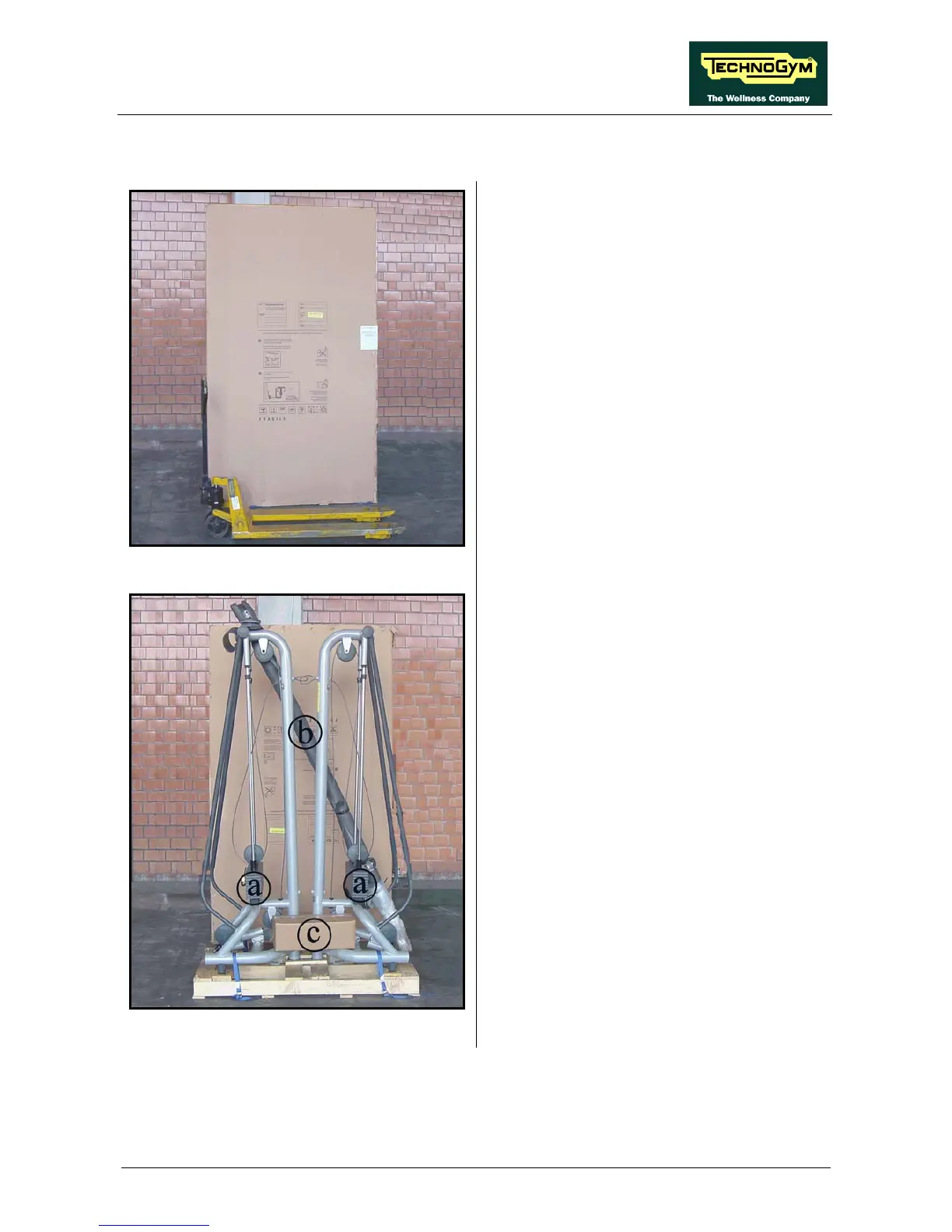

Figure 3.5-3
1. The Crossover Cable is delivered on a
wooden pallet, wrapped in nylon bag and
packed in a carton.
2. To move the machine, it is necessary to use a
pallet truck or fork lift truck
Figure 3.5-4
3. Remove the carton and the nylon bag and
arrange the various components needed to
assemble the machine on the floor:
• The two columns with the weight stack
(Ercolina) (a);
• The crossbar (b),
• The box which contains all the fixing
screws and some accessories.
