Technogym MA05 - Disassembling Shoulder Rest Lever on Abdominal Crunch

ELEMENT LINE: Service & Maintenance Manual - rev. 1.2
Page 5.12
5.8. DISASSEMBLING SHOULDER REST LEVER ON
ABDOMINAL CRUNCH

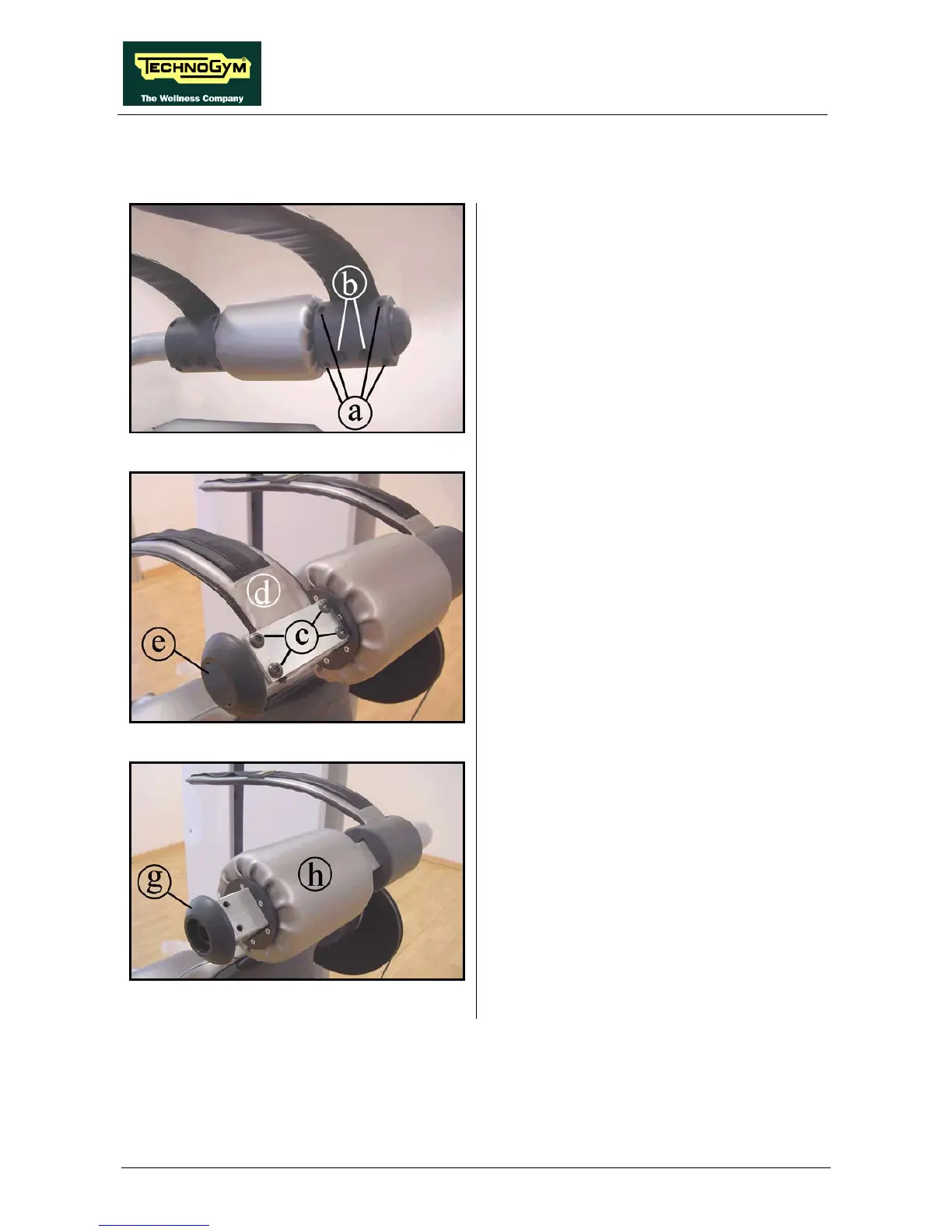

Figure 5.8-1
1. Back off the 4 screws (a) using a medium
Phillips screwdriver and remove the upper
plastic housing.
2. Back off the 2 screws (b) using a 5-mm hex
wrench and remove the lower plastic
housing.
Figure 5.8-2
3. Back off the 4 screws (c) using a 5-mm hex
wrench, remove the shoulder rest upholstery
d and its fixing plate.
4. Remove the cap (e) using a small flat
screwdriver.
Figure 5.8-3
5. Back off the plastic cap (g) using a 17-mm
hex wrench.
6. Pull out the roller upholstery (h) from the
lever tube.
7. Carry out the steps from 1 to 4, on the right
shoulder rest too.
To reassemble the shoulder rest lever, carry out
the above steps in reverse order.
