Technogym MA05 - Seat Disassembly

ELEMENT LINE: Service & Maintenance Manual - rev. 1.2
Page 5.3
5.3. SEAT ON LOW MACHINES
This operation applies to Leg Curl and Leg Extension.

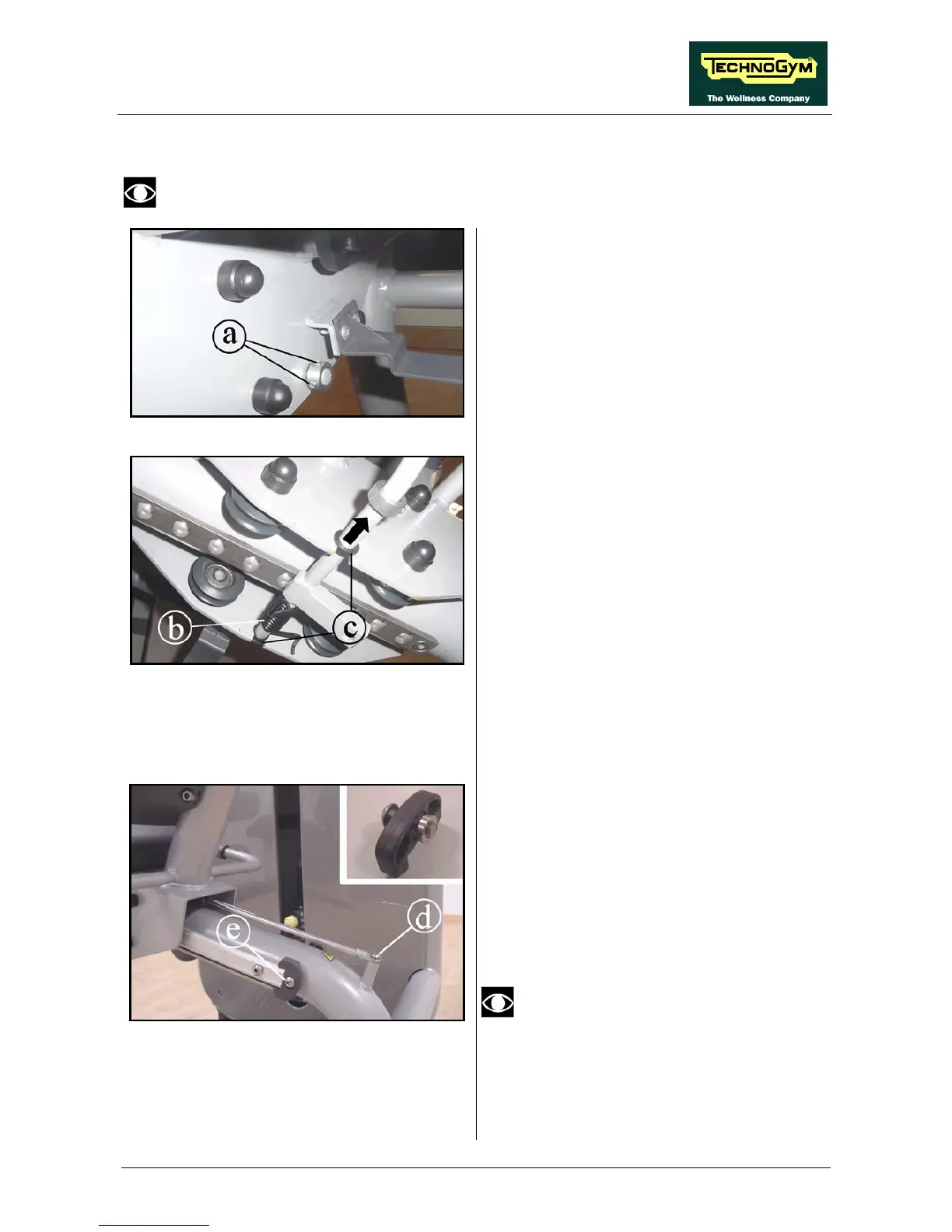

Figure 5.3-1
1. Back off the grub screws (a) which are fixing
the position of the seat position system lever,
using a 3-mm hex wrench. Carry out the
operation on both side of the seat.
Figure 5.3-2
2. Release the spring (b) of the seat position
system.
3. Slide the two plastic bushings (c) toward the
external side of the seat.
4. Remove the lever, sliding it out from the
lower side of the seat frame.
Figure 5.3-3
5. Move the seat into position 1 (all the way
forward) so that the gas spring is as fully
extended as possible.
6. Back off the screw (d) using a 5-mm hex
wrench.
7. Back off the screw (e) using a 6-mm hex
wrench and remove the plastic stop. Carry
out the operation on both side of the
machine.
8. Remove the seat, sliding it out from behind.
During the reassembling procedure
remember to place the spacer in the
inner side of the stop, as shown in the
picture.
To reassemble the weight stack, carry out the
above steps in reverse order.
