5.12. DISASSEMBLING THE ADDITIONAL WEIGHT

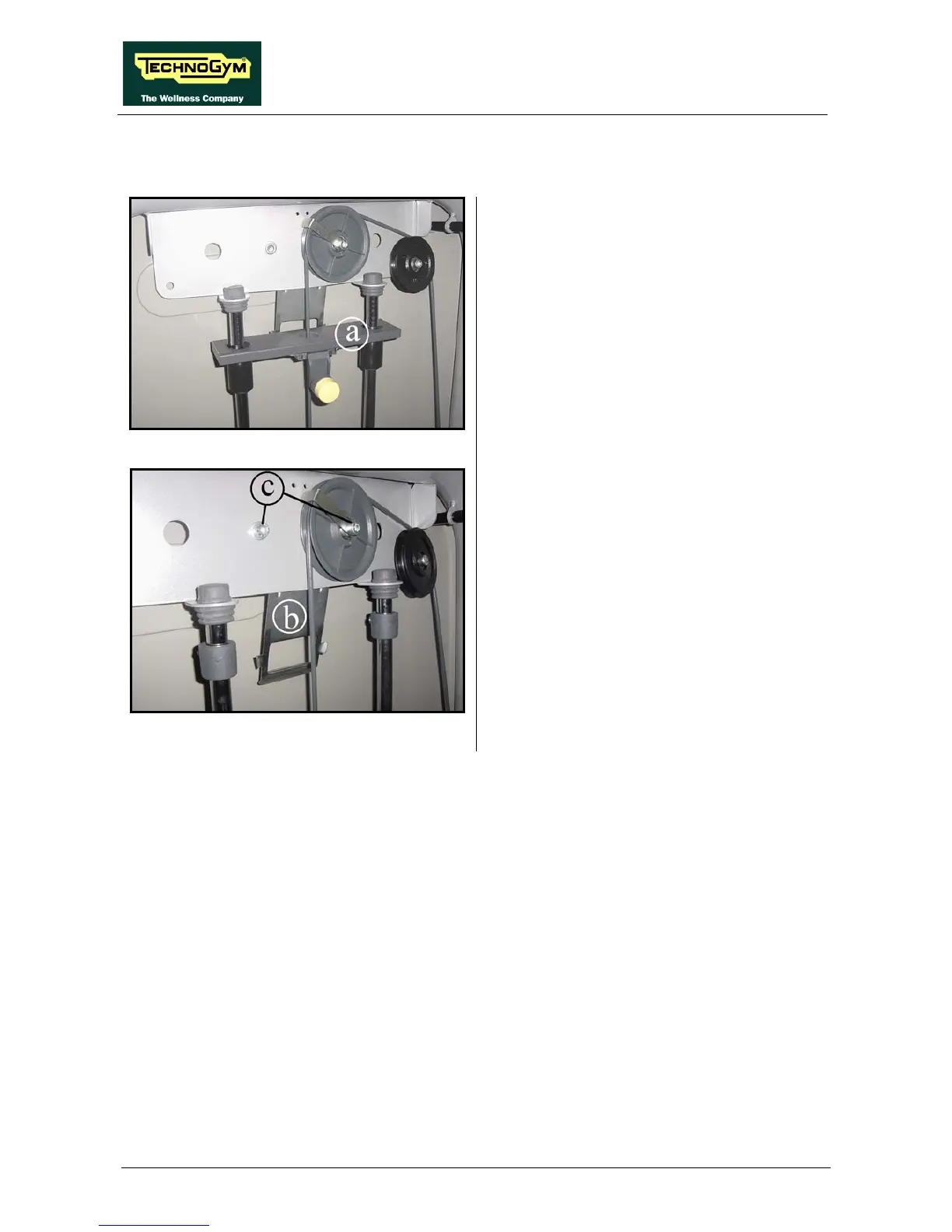

Figure 5.12-1
1. Carry out the procedure at paragraph 5.2.
“Disassembling the weight stack” as far as
step 5, disassembling only the front casing.
2. Push the rods toward the front side in order
to remove, from the top, the additional
weight assembly (a).
Figure 5.12-2
3. To remove the additional weight support
plate (b) back off the two screws (c) using a
6-mm wrench locking down the nuts on the
other side using a 17-mm wrench.
To reassemble the additional weight, carry out
the above steps in reverse order.
