ELEMENT LINE: Service & Maintenance Manual - rev. 1.2
Page 5.4
5.4. SEAT ON TALL MACHINES
This operation applies to Arm Curl, Arm Extension, Chest Press, Low Row, Pectoral,
Shoulder Press and Vertical Traction.

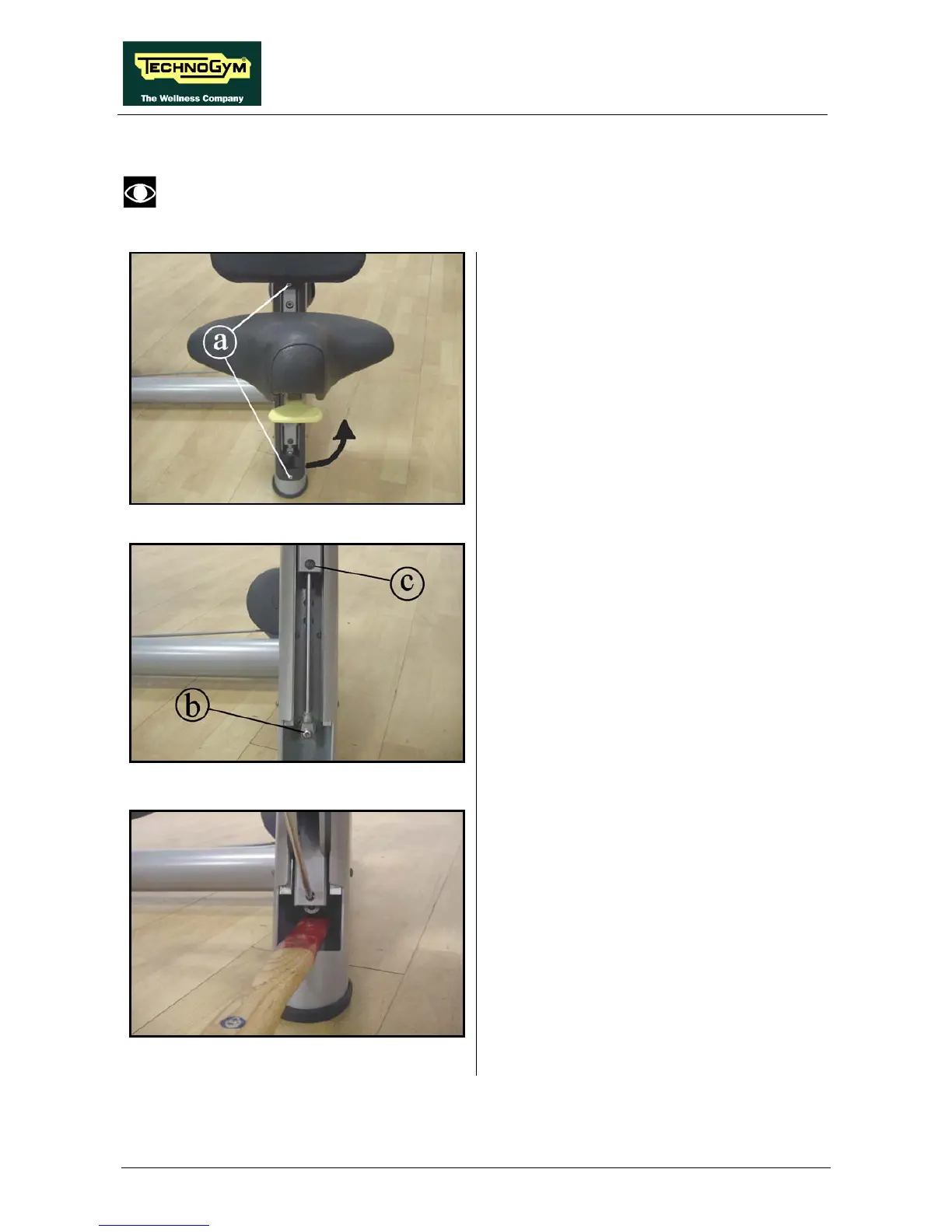

Figure 5.4-1
1. Remove the two rivets (a) and rotate the
plastic casing with the seat position numbers,
of 90° on the seat support.
Figure 5.4-2
2. Back off the screw (b) using a 5-gauge
hexagonal T-wrench.
3. Remove both the screw and the spacer which
are fixing the gas spring.
4. Remove the plastic cap (c).
Figure 5.4-3
5. Use an object such as a hammer handle to
compress the gas piston, then hold the piston
rod in place by inserting a screwdriver into
the hole underneath cap (c) and then into
hole underneath the spring as shown in the
figure.
6. Remove now the seat assembly from the
guides, pushing it toward the lower side.
Continued on next page
→
