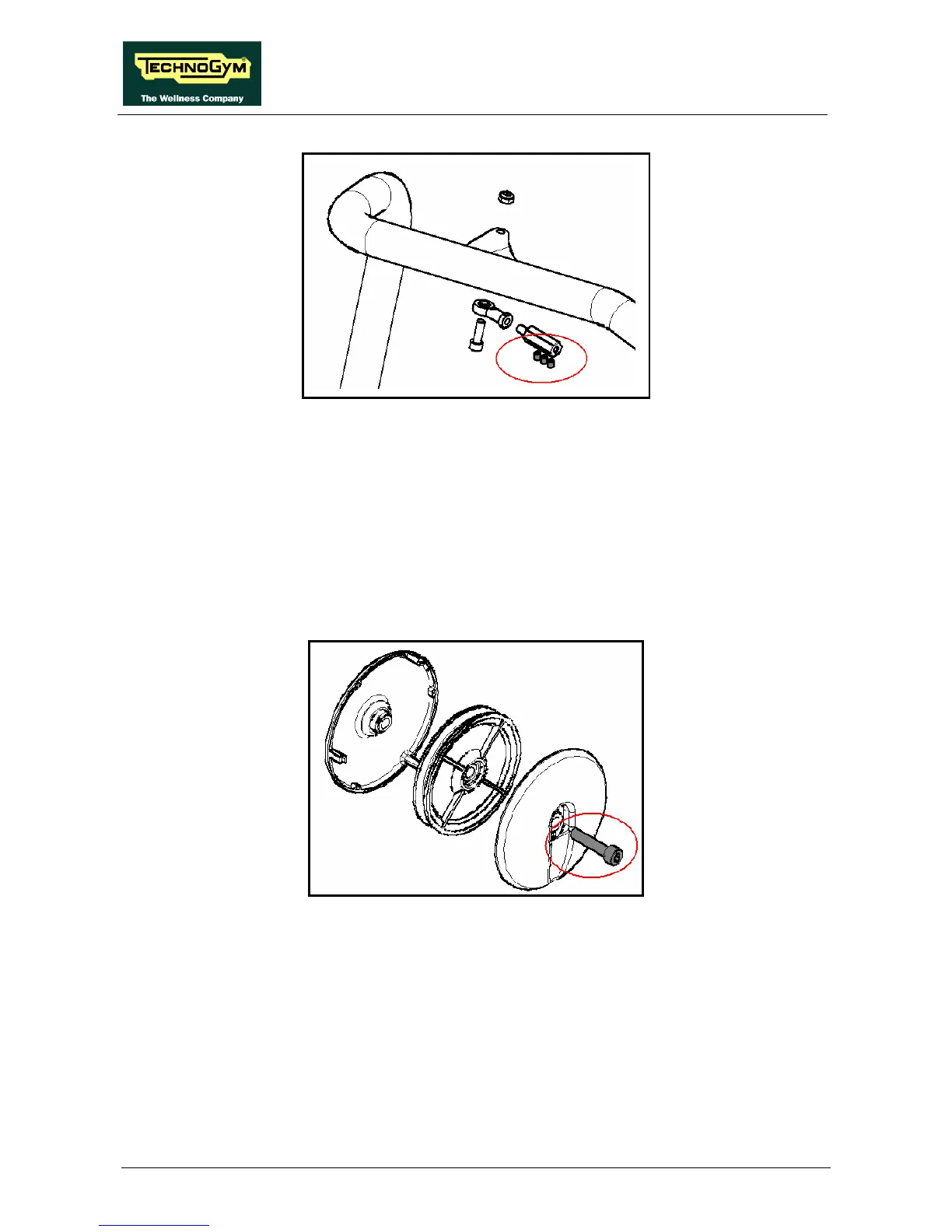

Figure 7.1-3
Use a torque wrench to ensure that the dowels are locked down with the prescribed torque of 16.5
Nm / 12.2 ft.lbs.
7.2. LOCKING DOWN THE PULLEYS
The screws of the pulleys, highlighted in grey and circled in the figure below, must be carefully
locked down to prevent them from working loose and causing problems to the user.
Figure 7.2-1
Use a torque wrench to ensure that the screws are locked down with the prescribed torque of 50 Nm
/ 36.9 ft.lbs.
